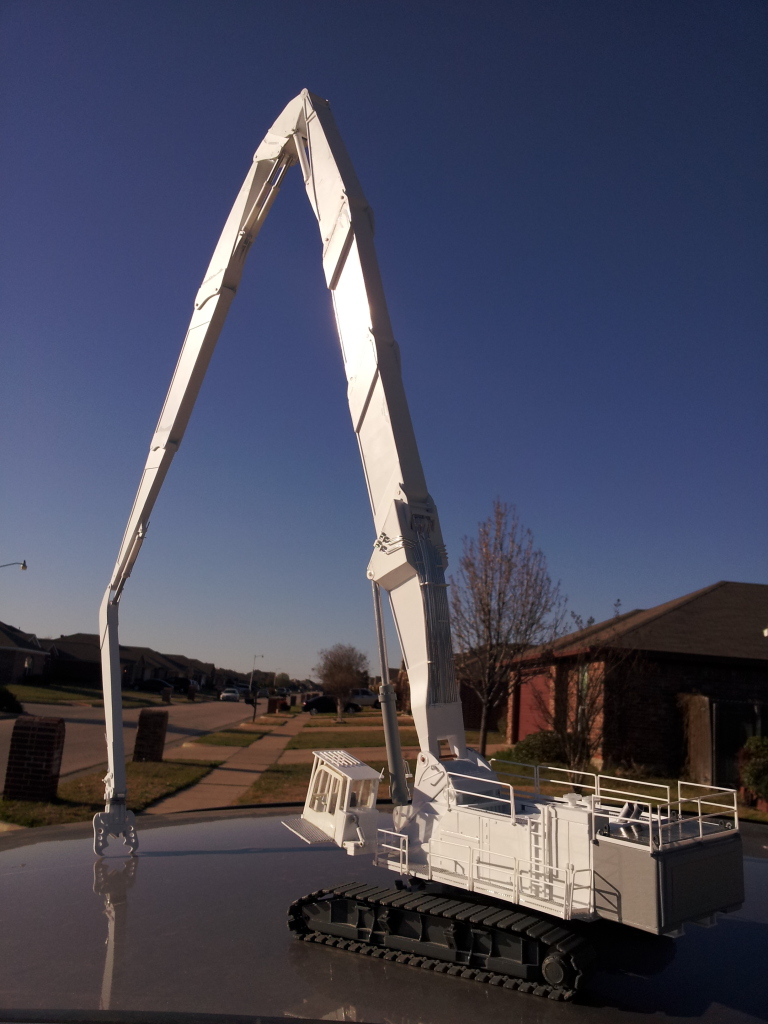

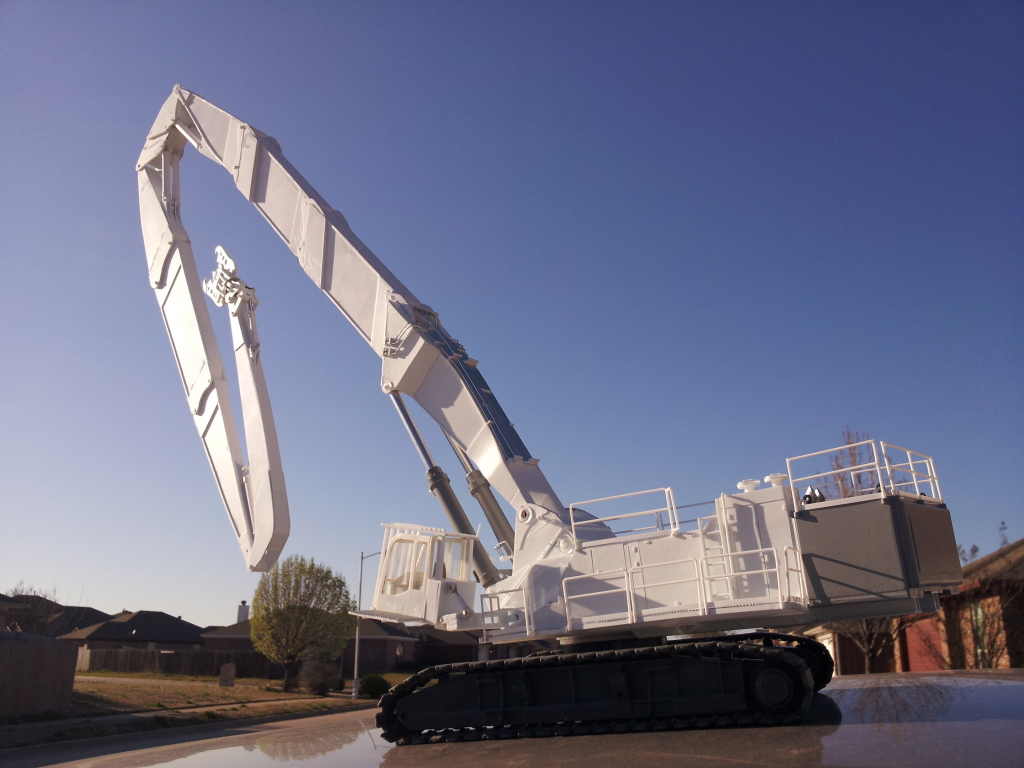

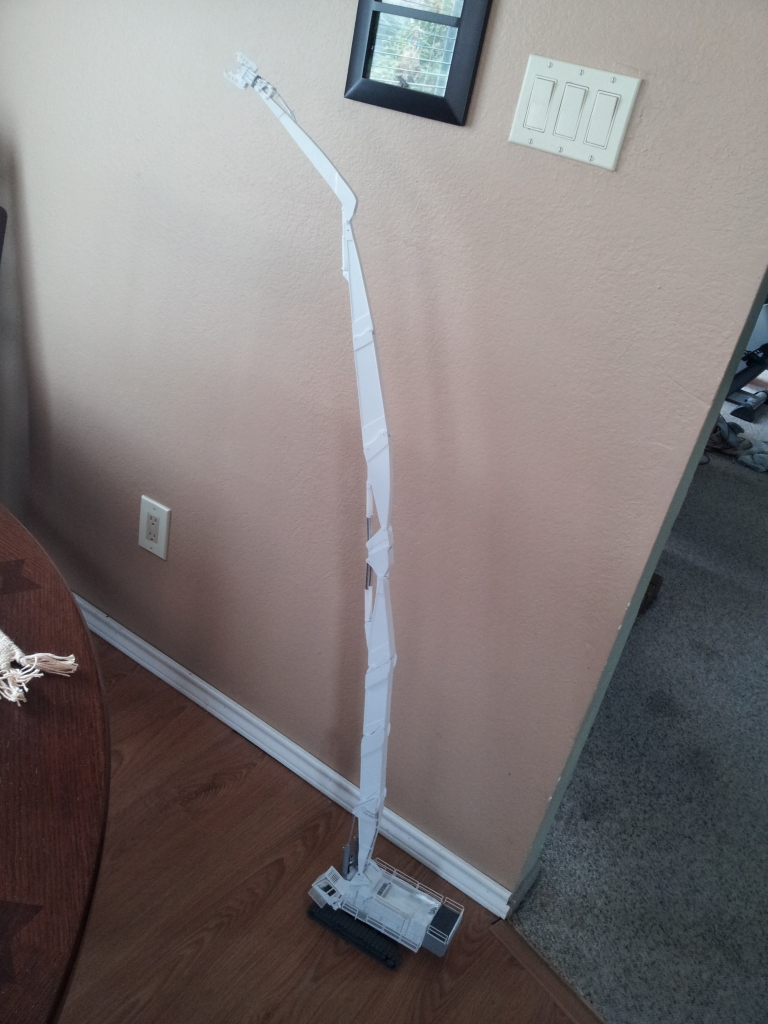

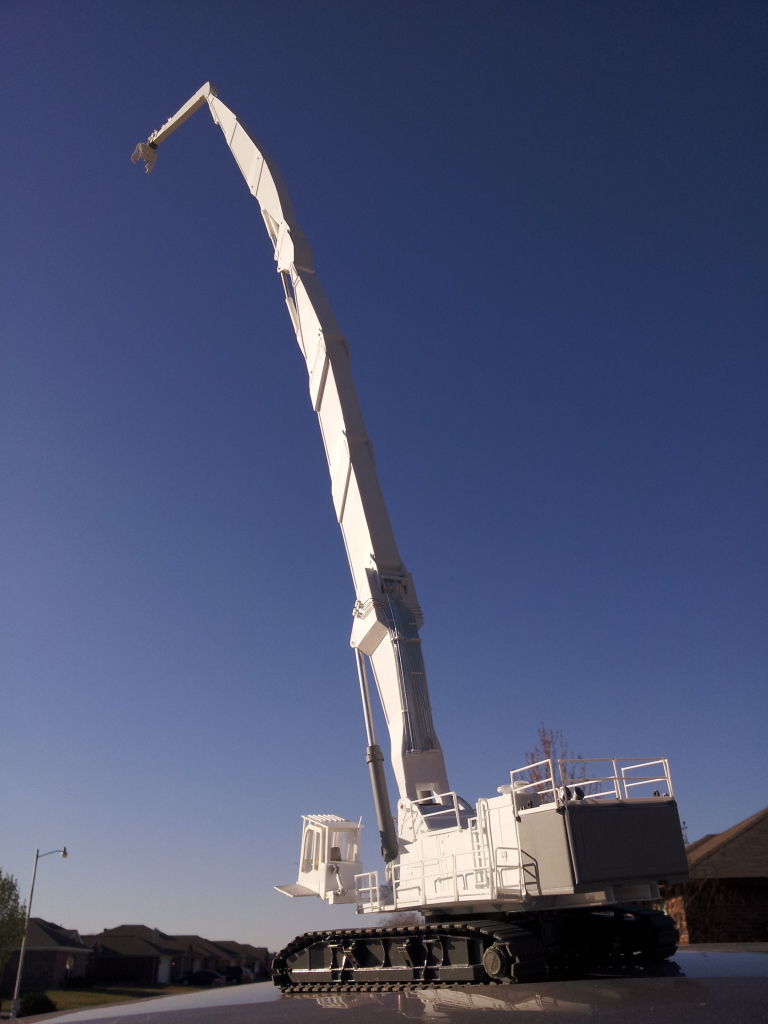

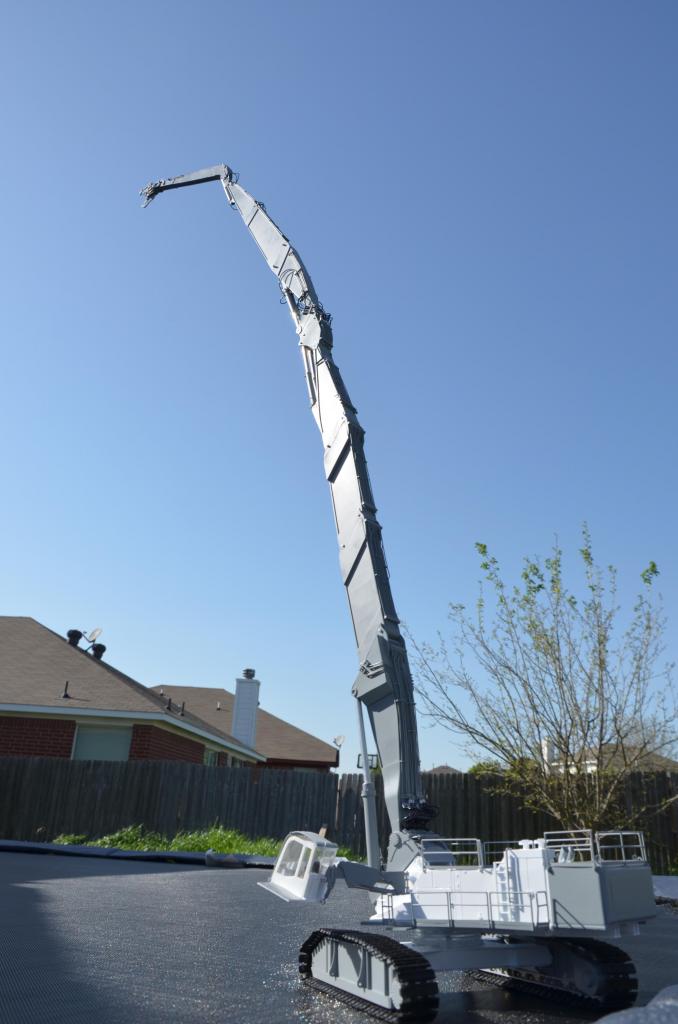

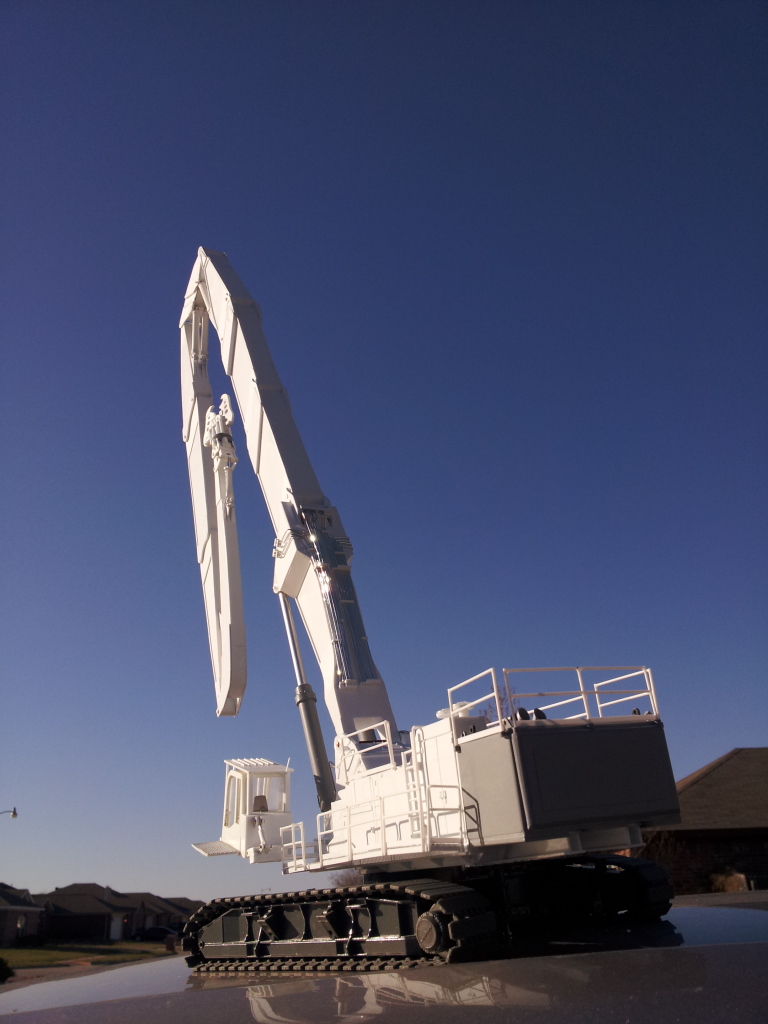

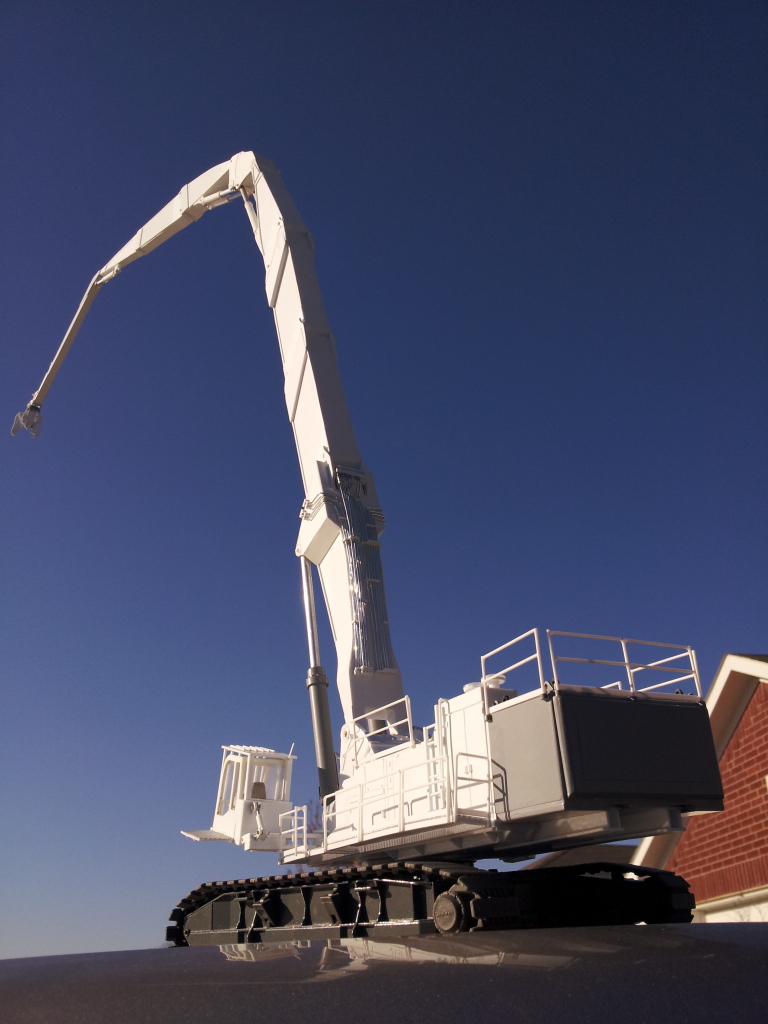

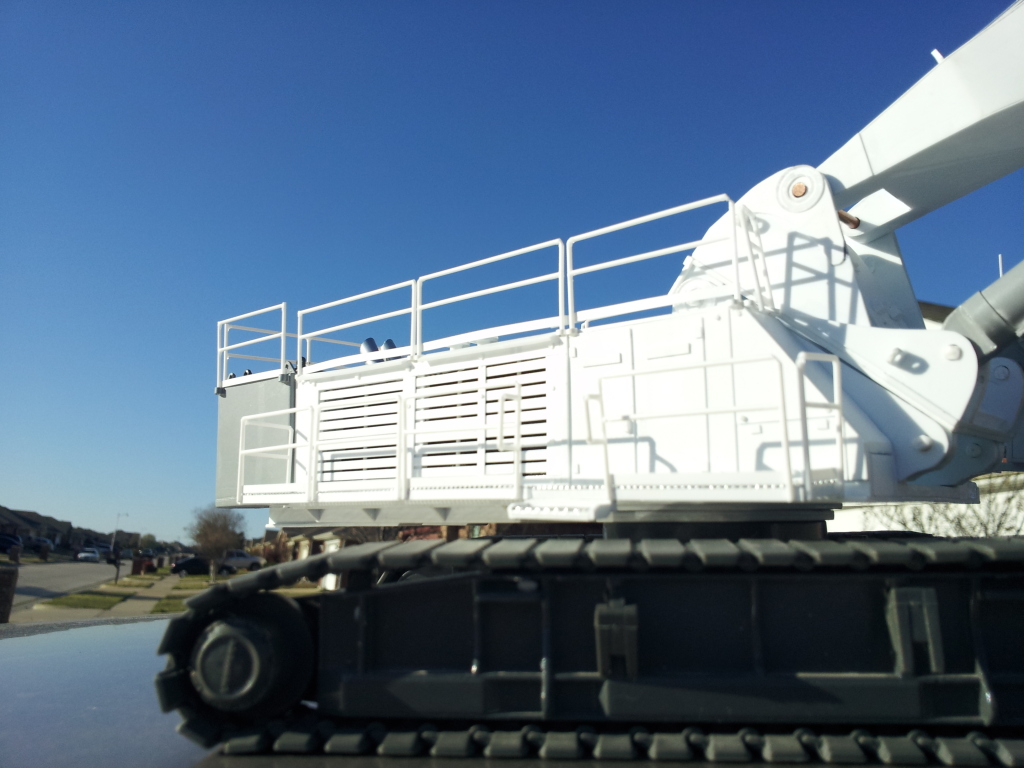

Ok had some issues and maxed out my photobucket. I have done a lot of work since I last posted. I have a final work height of 70 meters.
I have redone the radiators well I added another
I think it looks a lot better.

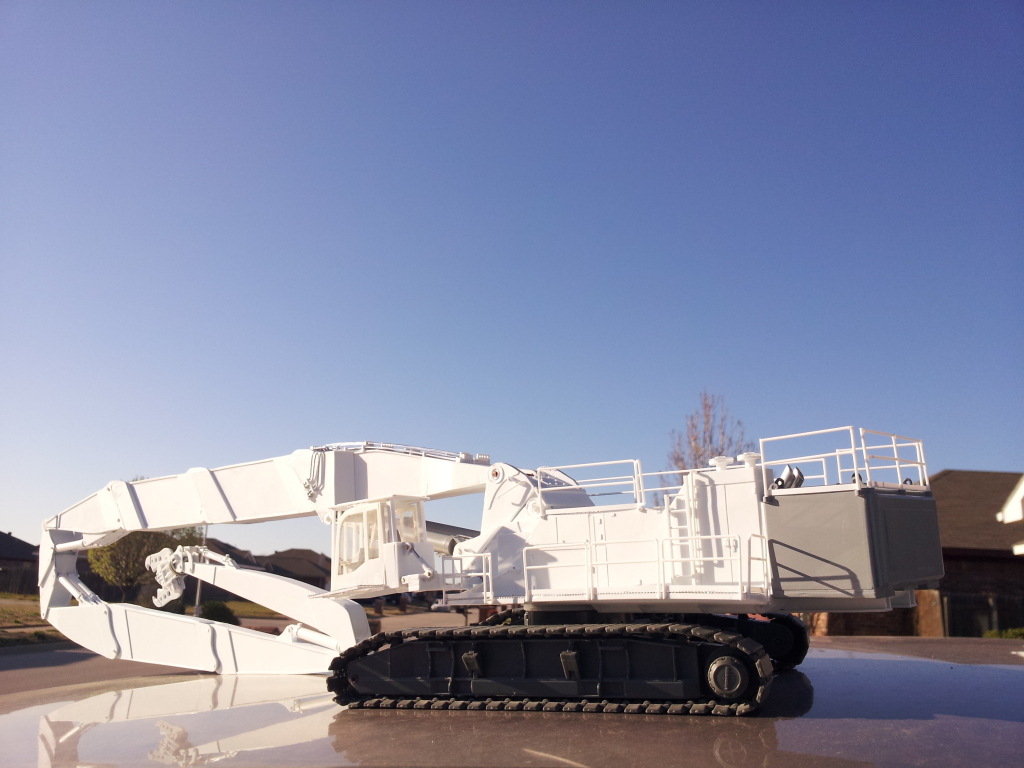

Here are some pics I took today
--
http://www.jaynikl.piczo.com/?cr=1 |
| |
|
|
028 — Direktlink
15.03.2013, 17:43 Uhr
Jason
|
I took 2 videos of the excavator. not the best but alittle better then pics all the time. I got a phone call filming the first vid so it cut off.
vid 1
vid 2
Jason
Edit: Linkfix
--
http://www.jaynikl.piczo.com/?cr=1
Dieser Post wurde am 15.03.2013 um 18:03 Uhr von Sebastian Suchanek editiert. |
| |
|
|
029 — Direktlink
18.03.2013, 04:57 Uhr
Jason
|

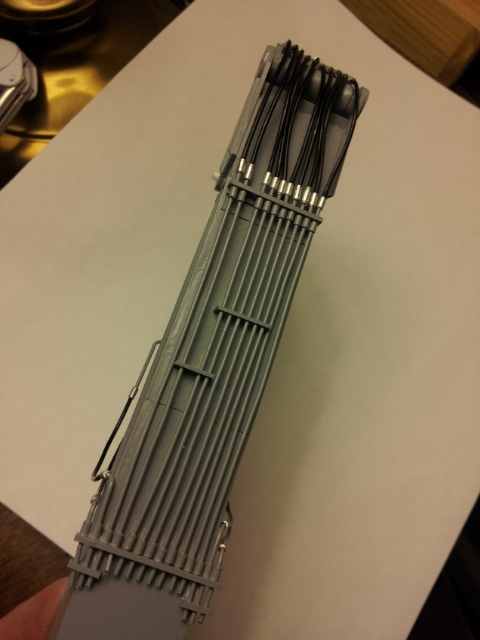

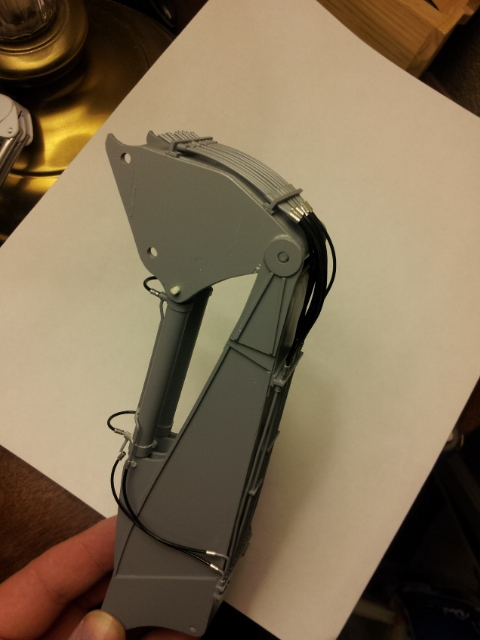

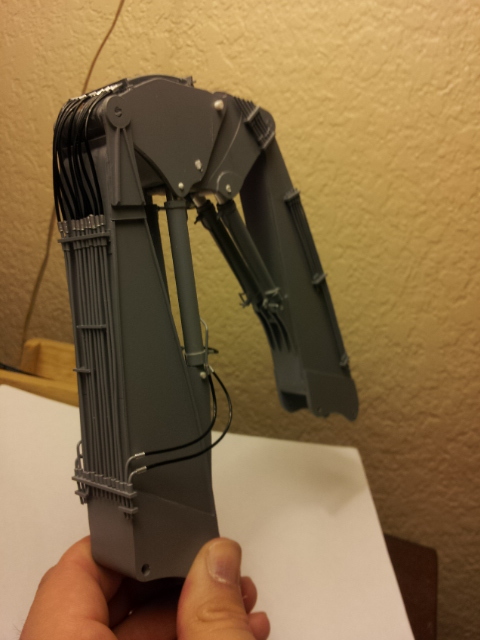

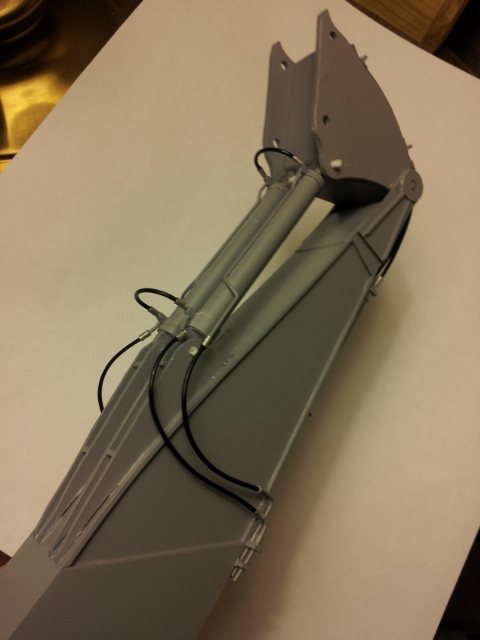

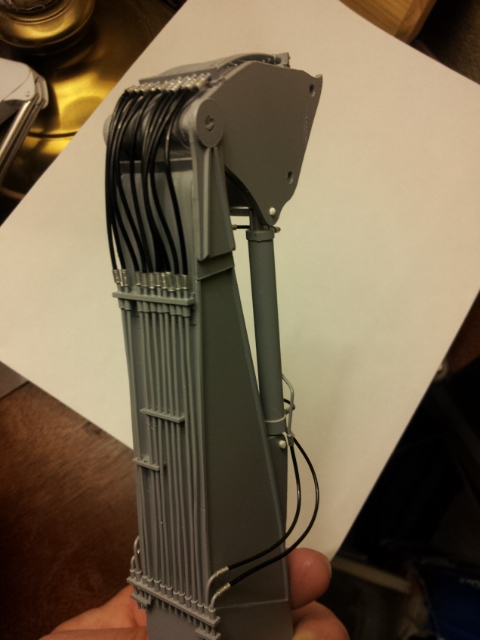

Got the hard lines install on most of the boom pieces. So I started priming the sections.
A lot of work goes into the lines a lot of small pieces
--
http://www.jaynikl.piczo.com/?cr=1 |
| |
|
|
031 — Direktlink
18.03.2013, 07:48 Uhr
Gast:LKWundMEHR
Gäste
|
...much better  .
Greetings Daniel |
| |
|
|
032 — Direktlink
26.03.2013, 17:56 Uhr
Jason
|

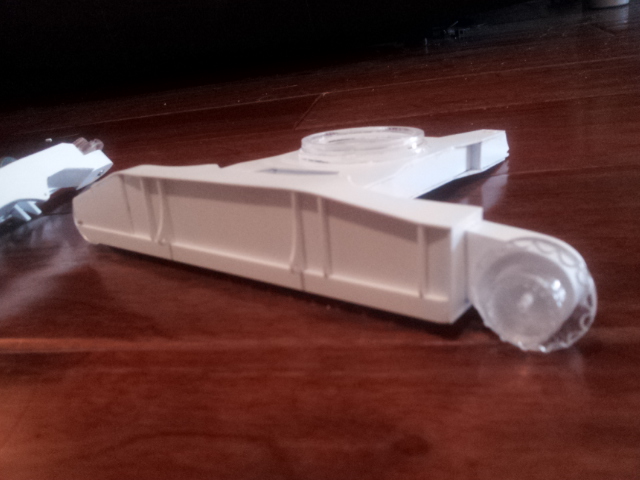

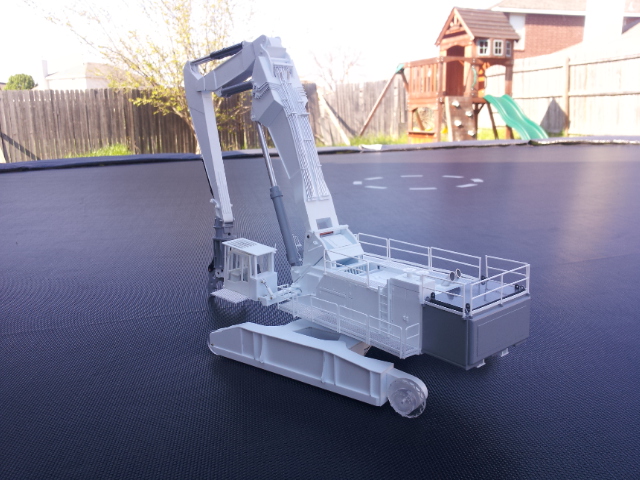

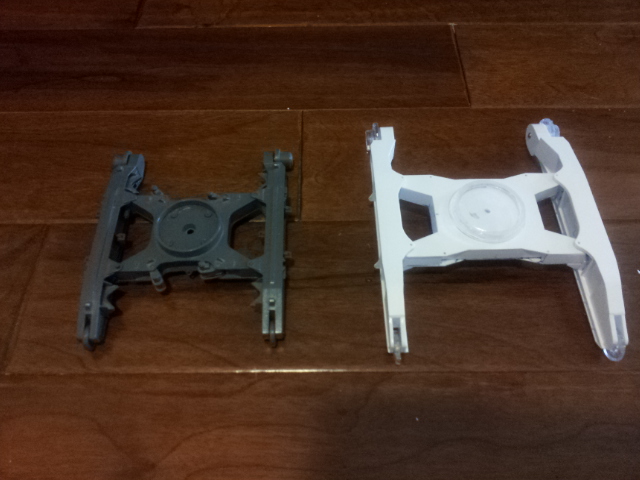

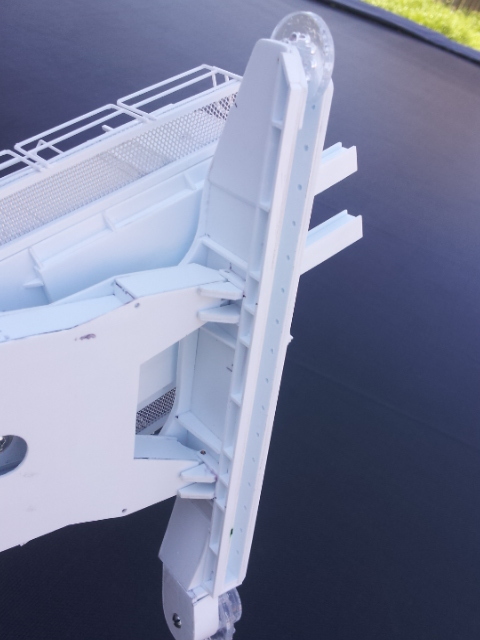

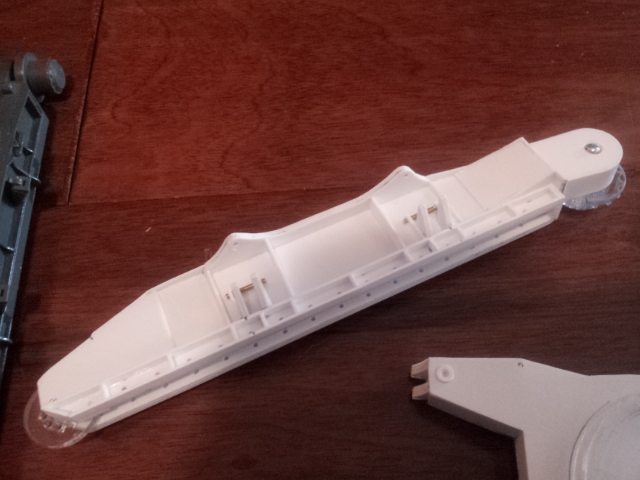

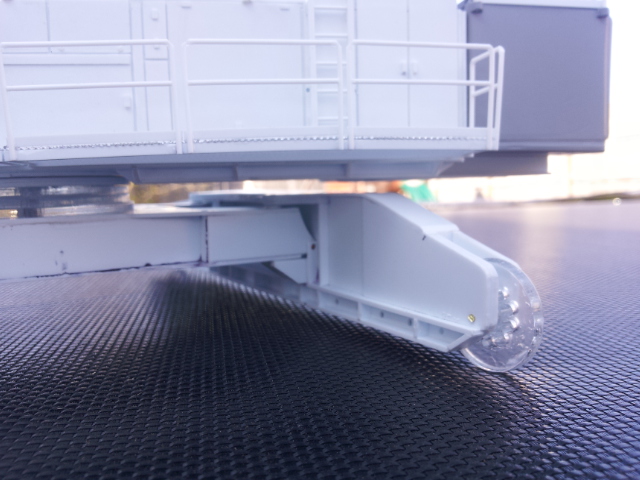

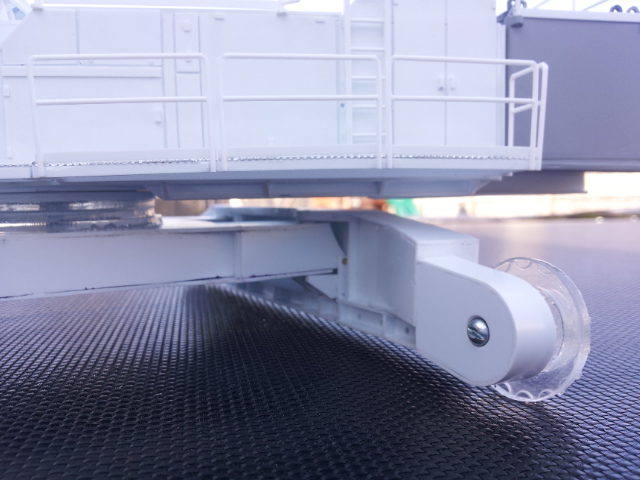

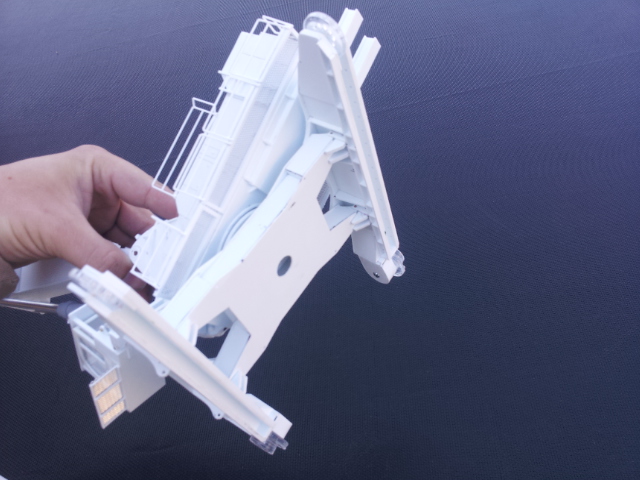

Ok got some professional advice from a friend about my undercarriage being small. So I went to designing a larger undercarriage. This one is wider longer and is more heavy duty to handle the stress from the demo duties.
I designed rollers that will actually work, just need to fit them
Not the best pics hard to get pics of the white with cam phone
--
http://www.jaynikl.piczo.com/?cr=1 |
| |
|
|
034 — Direktlink
26.03.2013, 17:58 Uhr
Jason
|

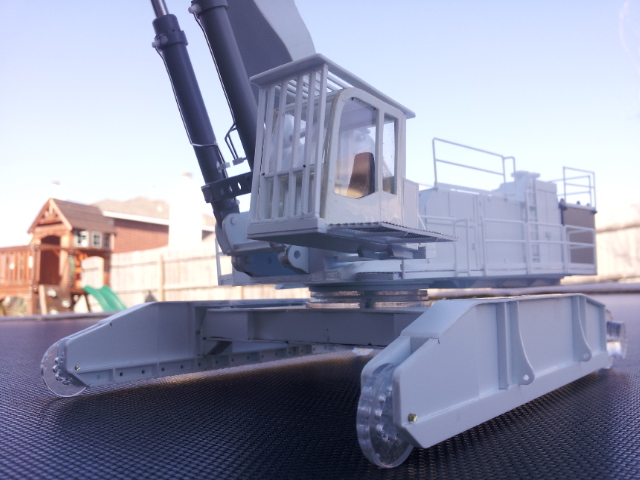

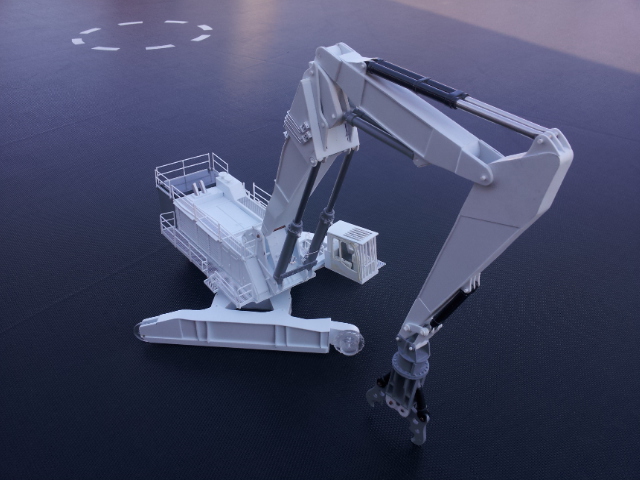

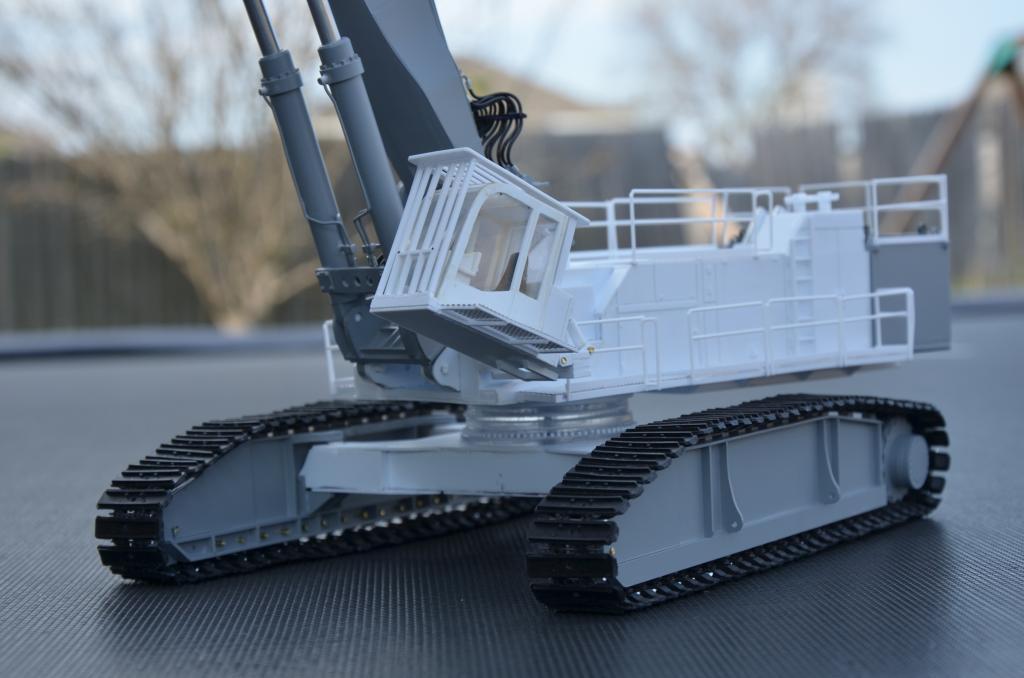

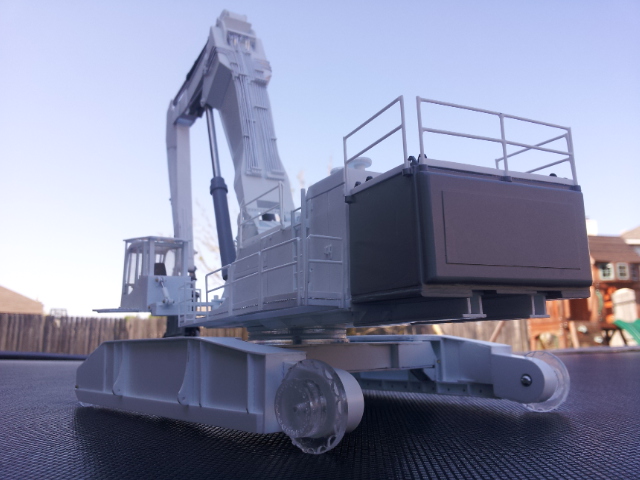

Here is a look at the body on its new tracks
Now I am off to mold my track for the machine. I am doing a different looking design Eric talked me into this design
It will not be a smooth crane pad
Jason
--
http://www.jaynikl.piczo.com/?cr=1 |
| |
|
|
035 — Direktlink
27.03.2013, 12:29 Uhr
JensHG
|
Very Good.. :-) |
| |
|
|
036 — Direktlink
09.04.2013, 22:43 Uhr
Jason
|
Ok been casting track pads what seems like forever now just about 130 of them. Each track takes 63 of them, each track had to be demolded , cut off the spurs and pouring gates, hand drill the hinges and then pinned together. I am sick of seeing tracks for a while.......but man does it look good
--
http://www.jaynikl.piczo.com/?cr=1 |
| |
|
|
038 — Direktlink
09.04.2013, 22:47 Uhr
Jason
|

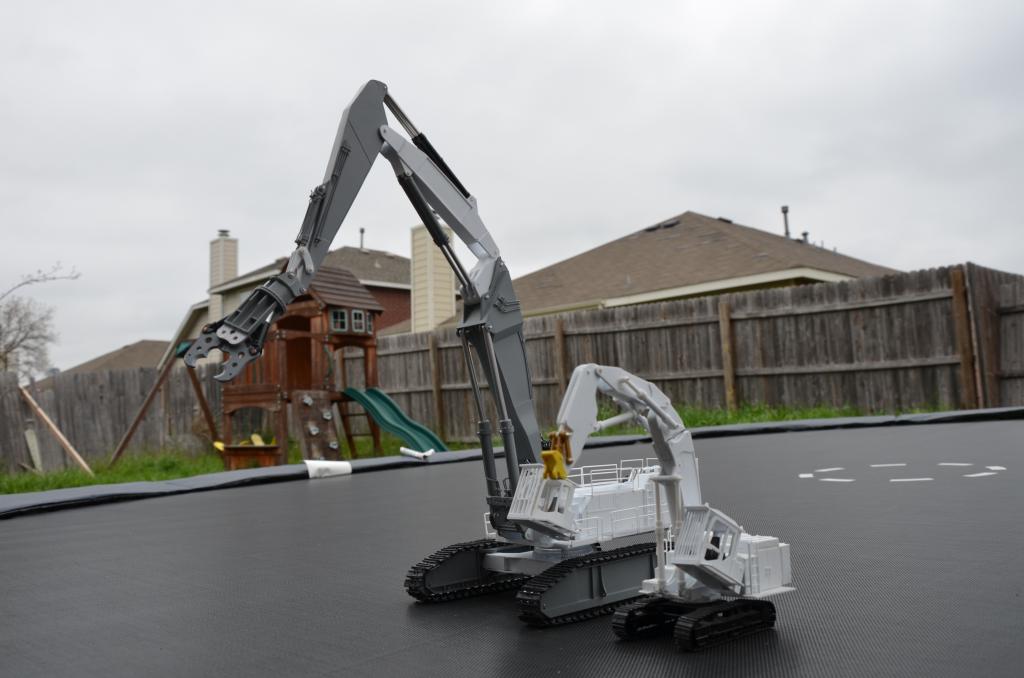

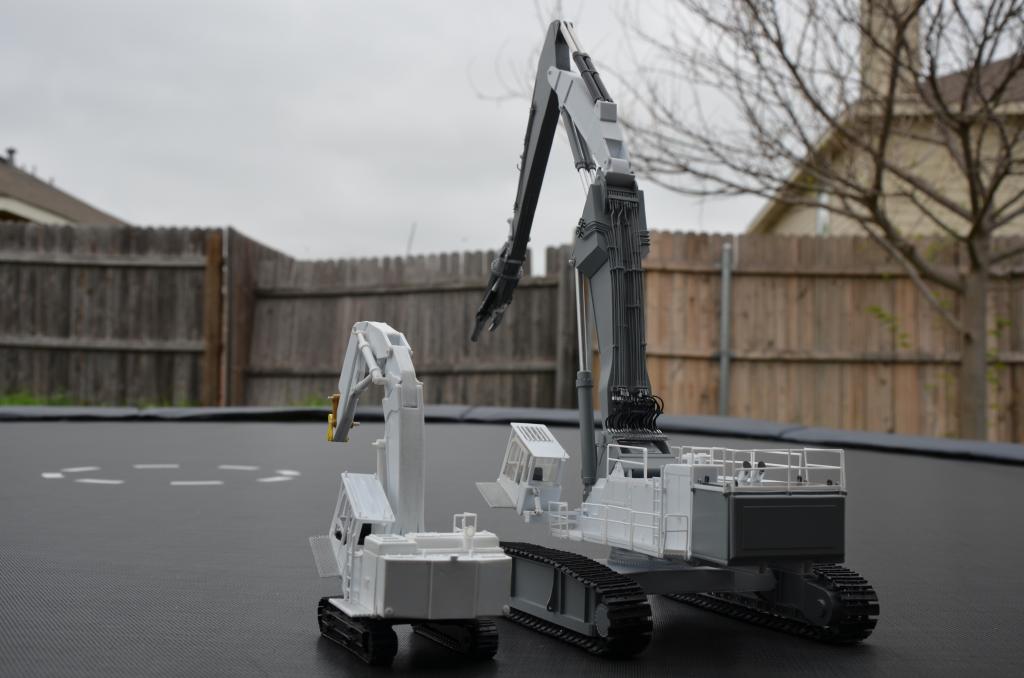

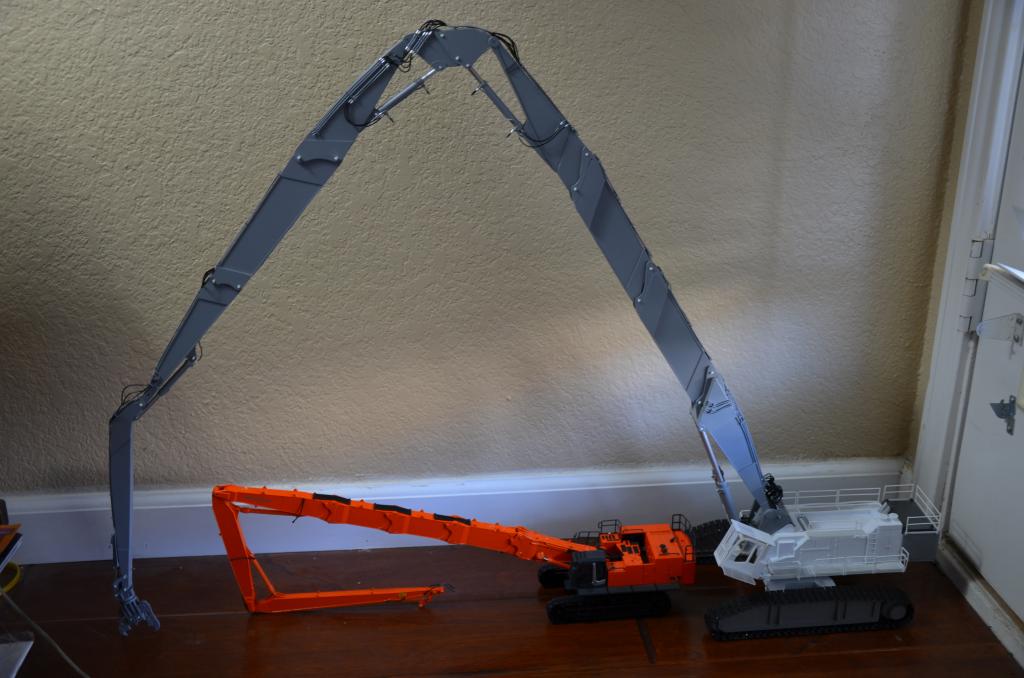

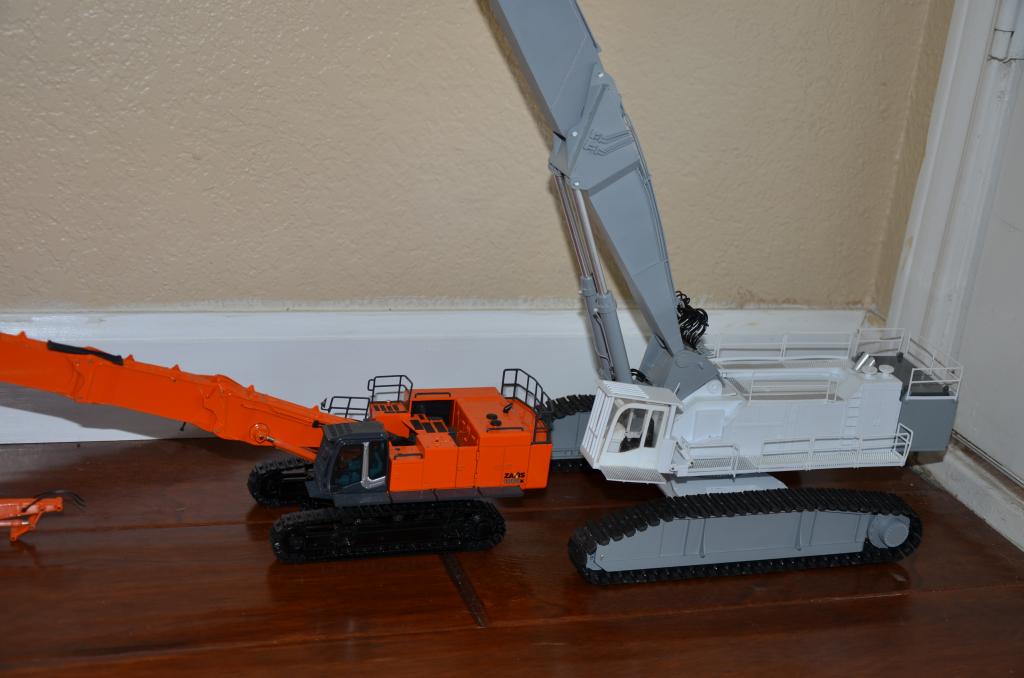

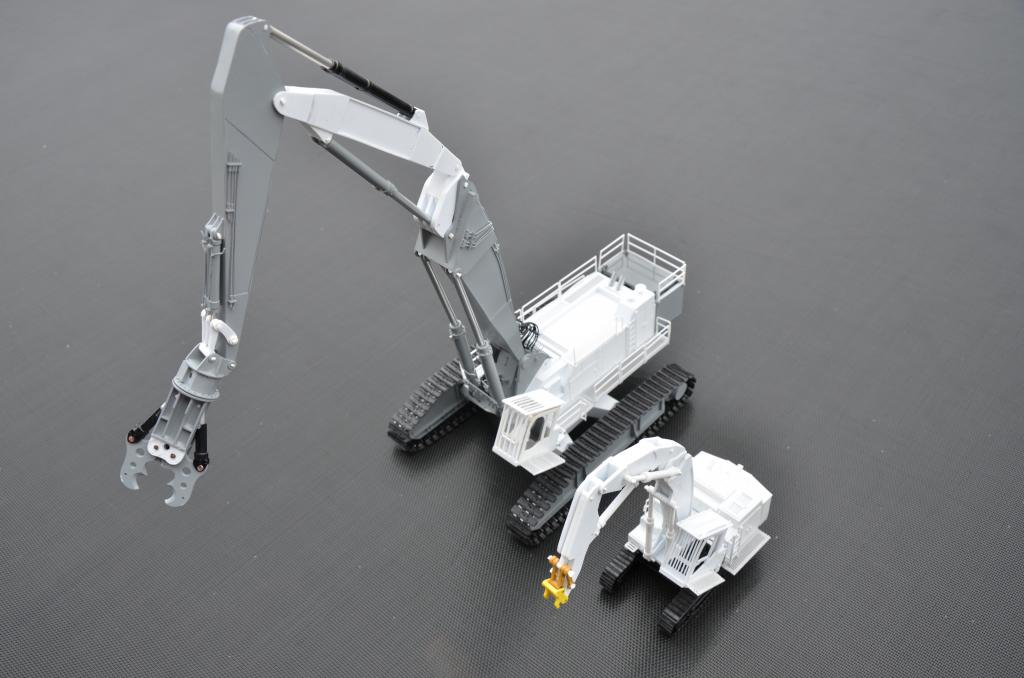

An those of you who have the big demolition excavator the HItachi EX1000 well this is what it looks like next to the R300D.
Th
Fully extended
Making the 1000 feel even smaller
Closer look at the 2

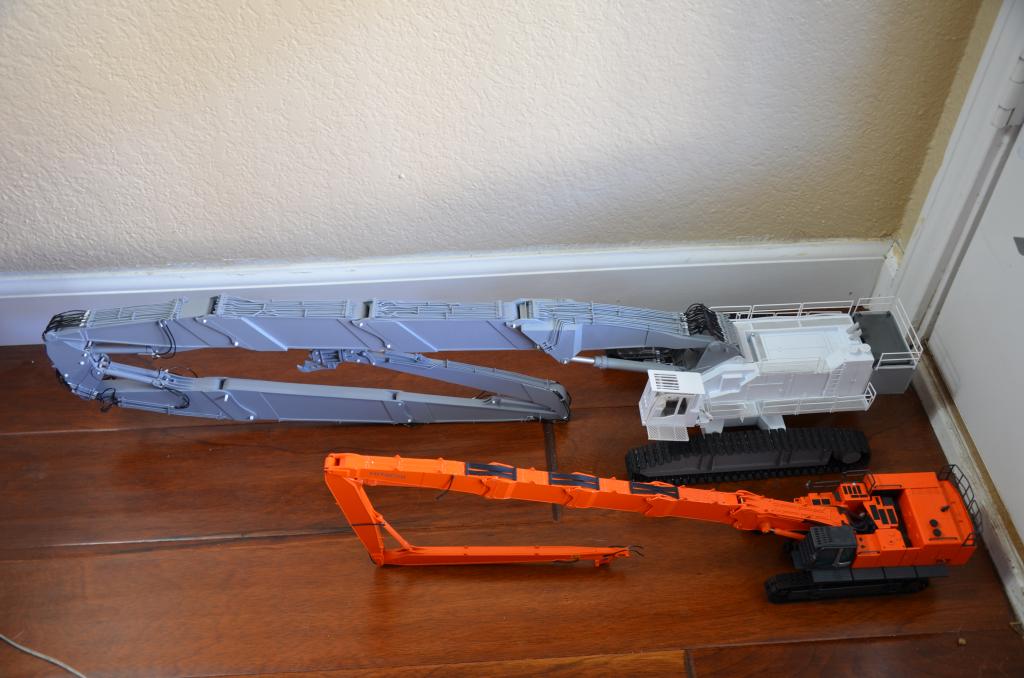

Both booms layed down

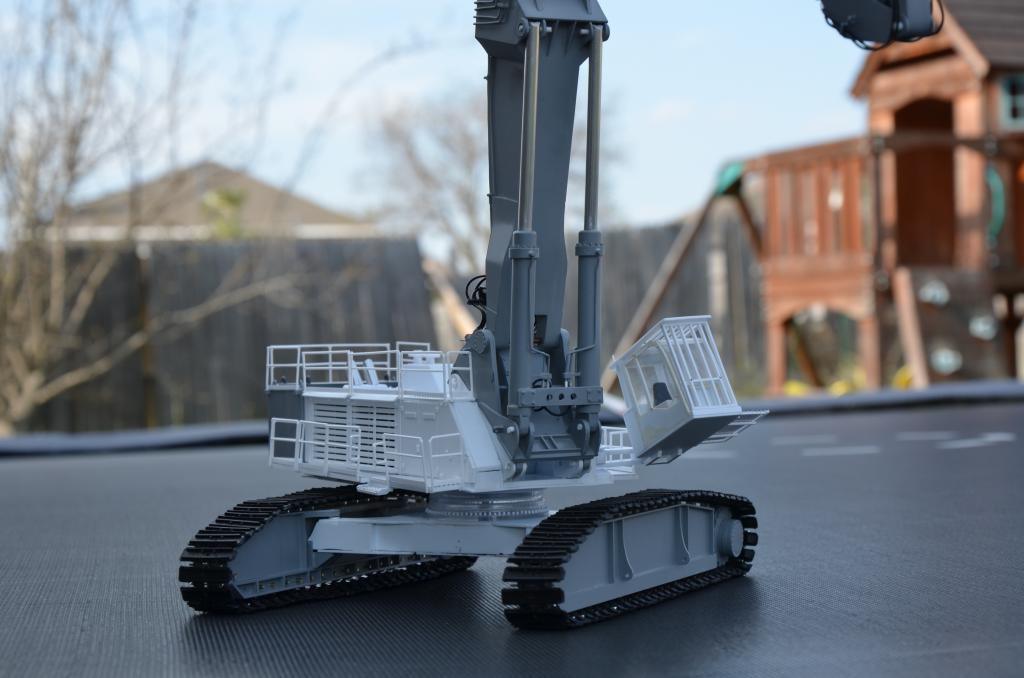

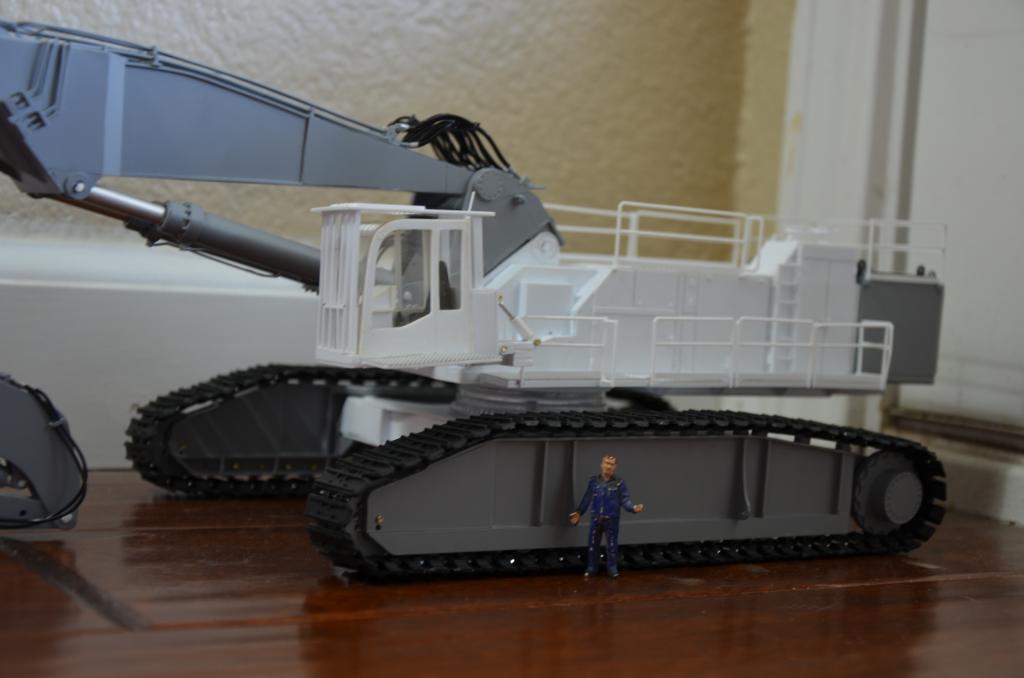

New tracks a lot taller then the 1280 tracks
I will get a pic with the short boom set up in a bit, hope you are enjoying the build
Jason
--
http://www.jaynikl.piczo.com/?cr=1 |
| |
|
|
039 — Direktlink
14.04.2013, 15:30 Uhr
Jason
|

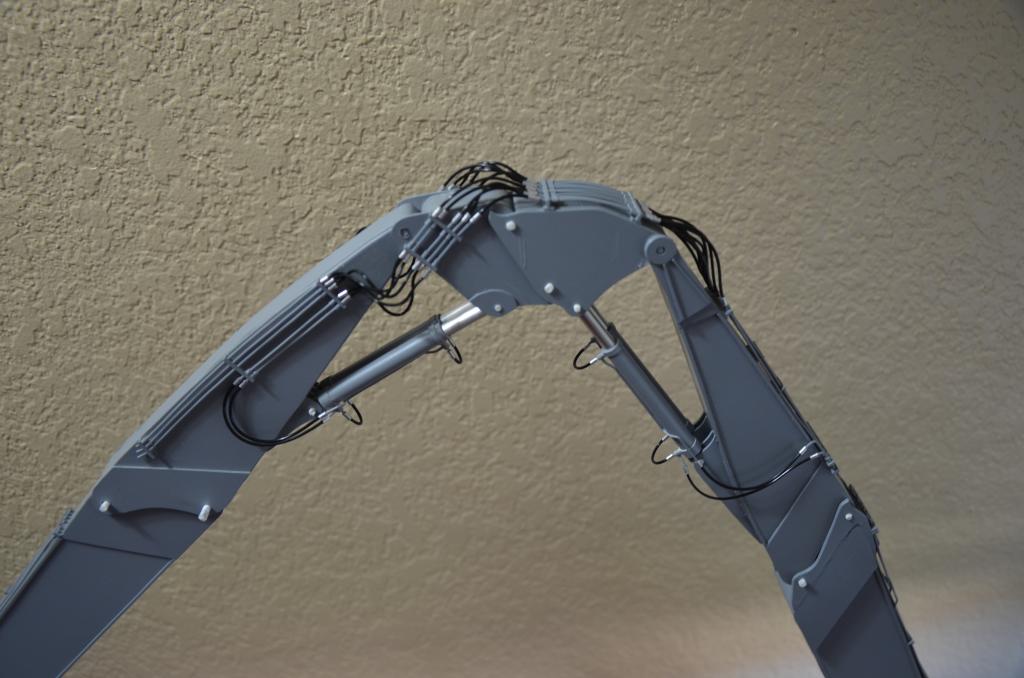

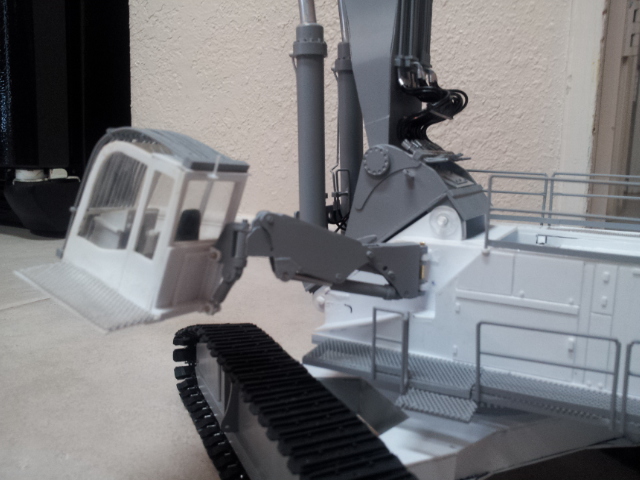

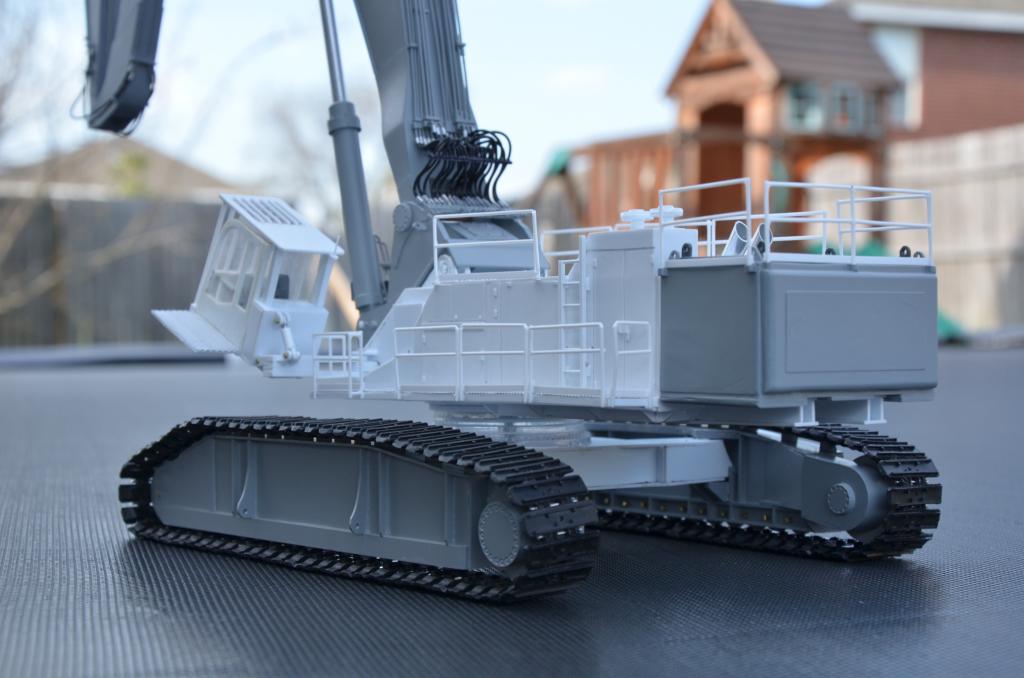

Ok I have redone the cab set up and added a lifting arm to make cab access easier. I have also painted all of the boom and started on the body.
--
http://www.jaynikl.piczo.com/?cr=1 |
| |
|
|
042 — Direktlink
17.10.2013, 09:15 Uhr
JensHG
|
Hi Jason
have you updates for us from the demolition excavator?
best regards
Jens |
| |
|
|
043 — Direktlink
07.07.2014, 05:37 Uhr
Jason
|

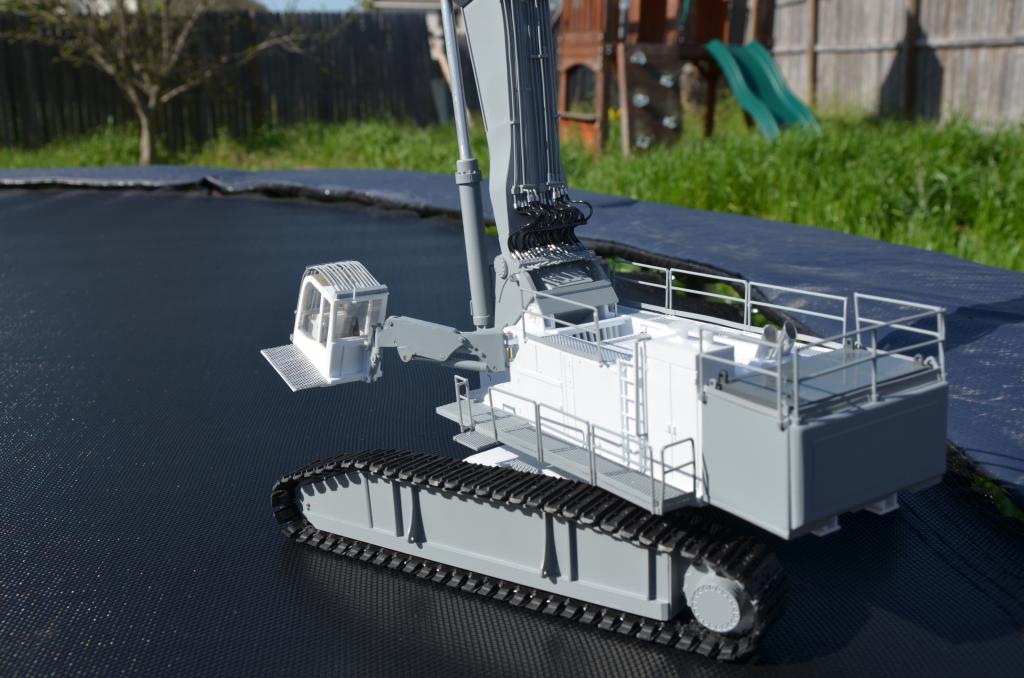

Here is a excavator I have designed and complety built. It is based off of the Kobelco 2500 and some custom design features I have added
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/d300a_zps4757492e.jpg.html] [/URL]

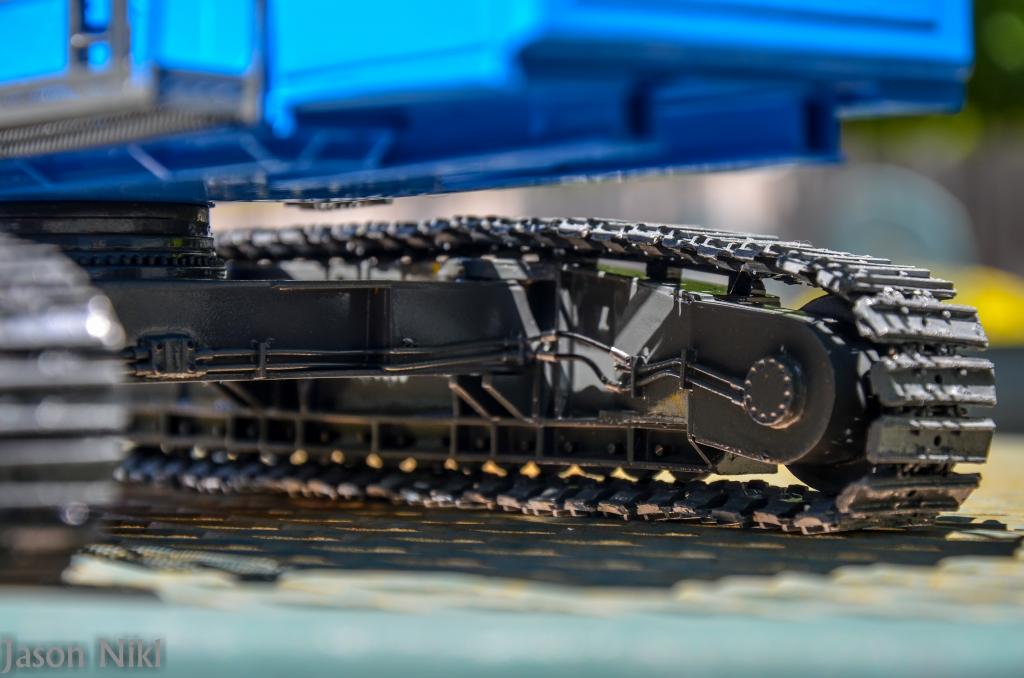

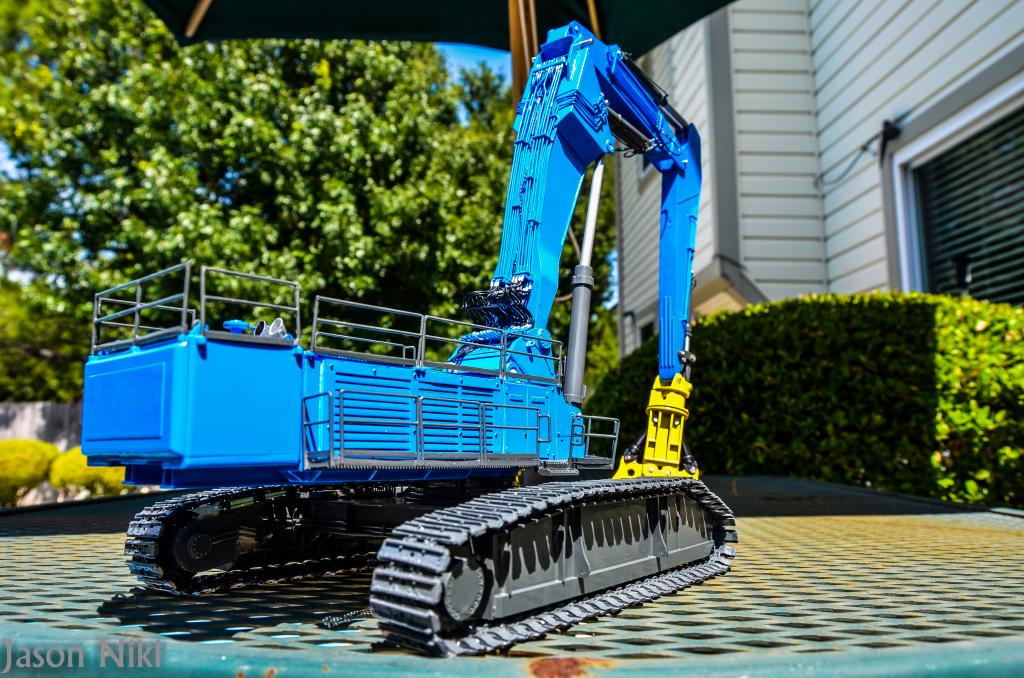

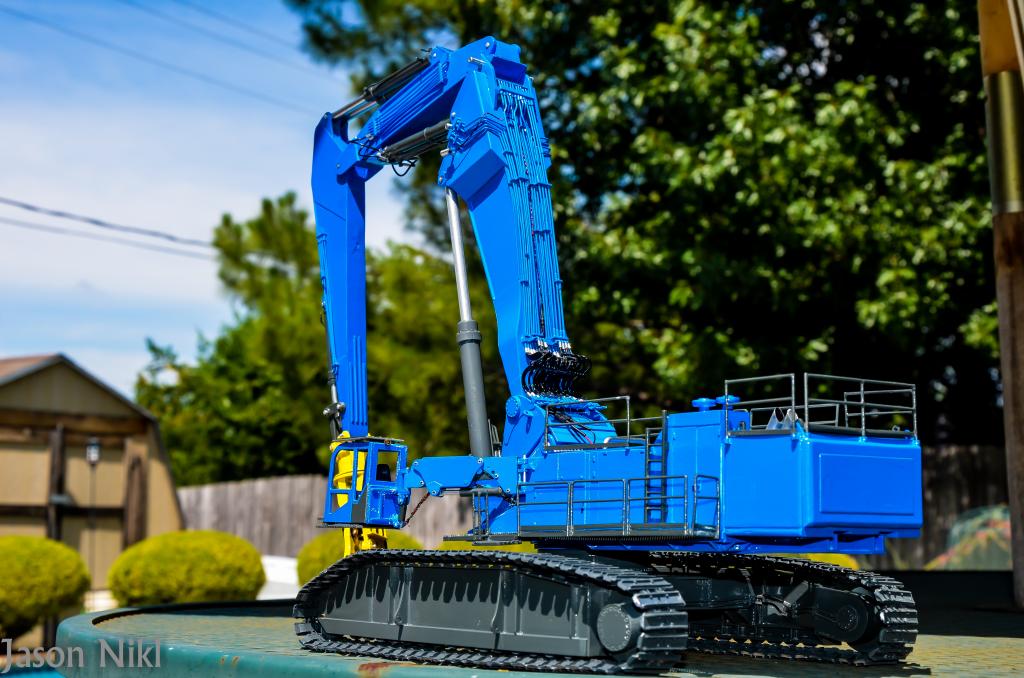

Detail pic of the hydr lines to the rear track drive motors
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/d300b_zps105be0bf.jpg.html] [/URL]

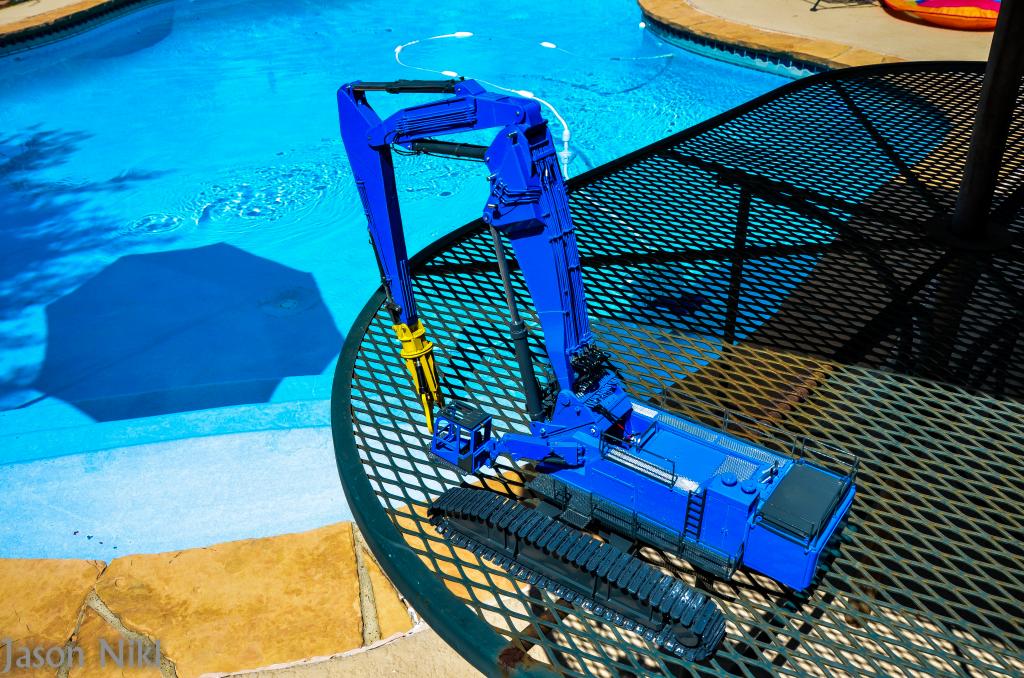

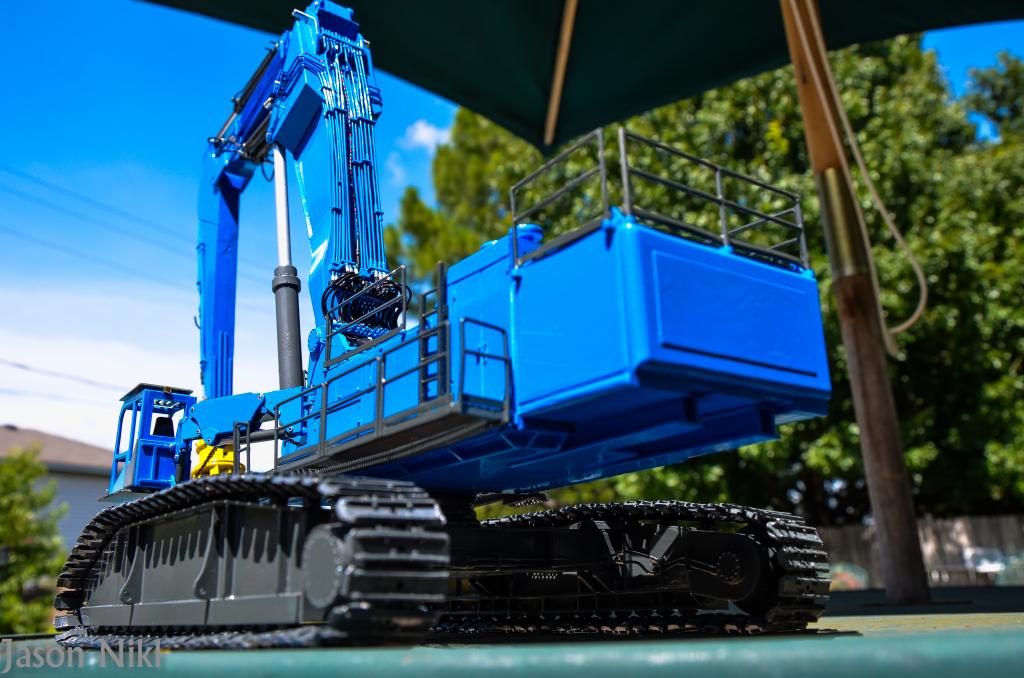

[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/d300c_zps0ab4c6fb.jpg.html] [/URL]
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/d300d_zps24abccb9.jpg.html] [/URL]
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/d300e_zpsd9dfcd47.jpg.html] [/URL]
--
http://www.jaynikl.piczo.com/?cr=1 |
| |
|
|
044 — Direktlink
07.07.2014, 05:38 Uhr
Jason
|

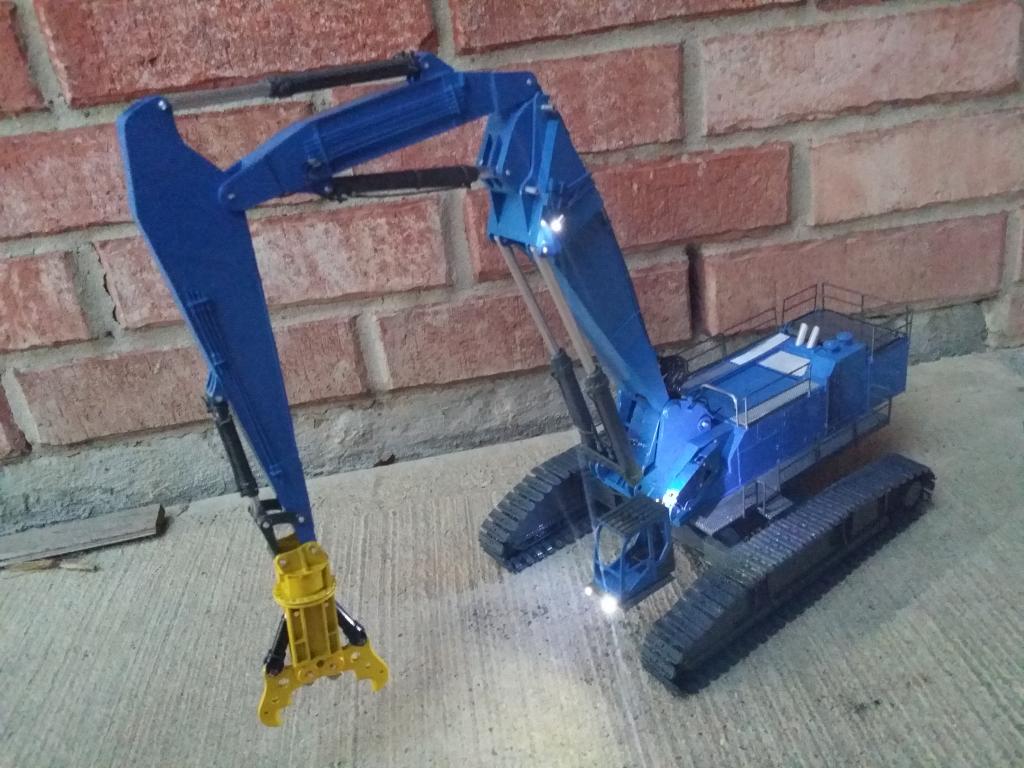

I have added more LED lights to the machine aswell. 2 forward on cab, 1 rear on the cab. 1 forward driver light on right side of the house and 1 light on the boom which is moveable.
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/20140706_204210_zps8smcmcqj.jpg.html] [/URL]

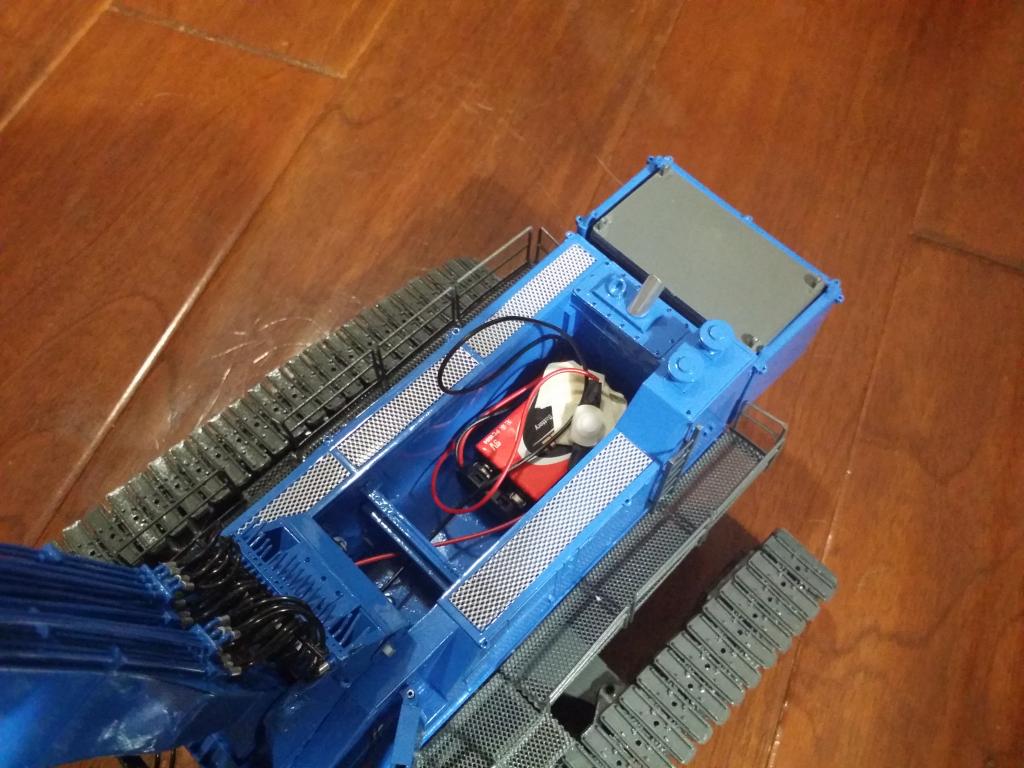

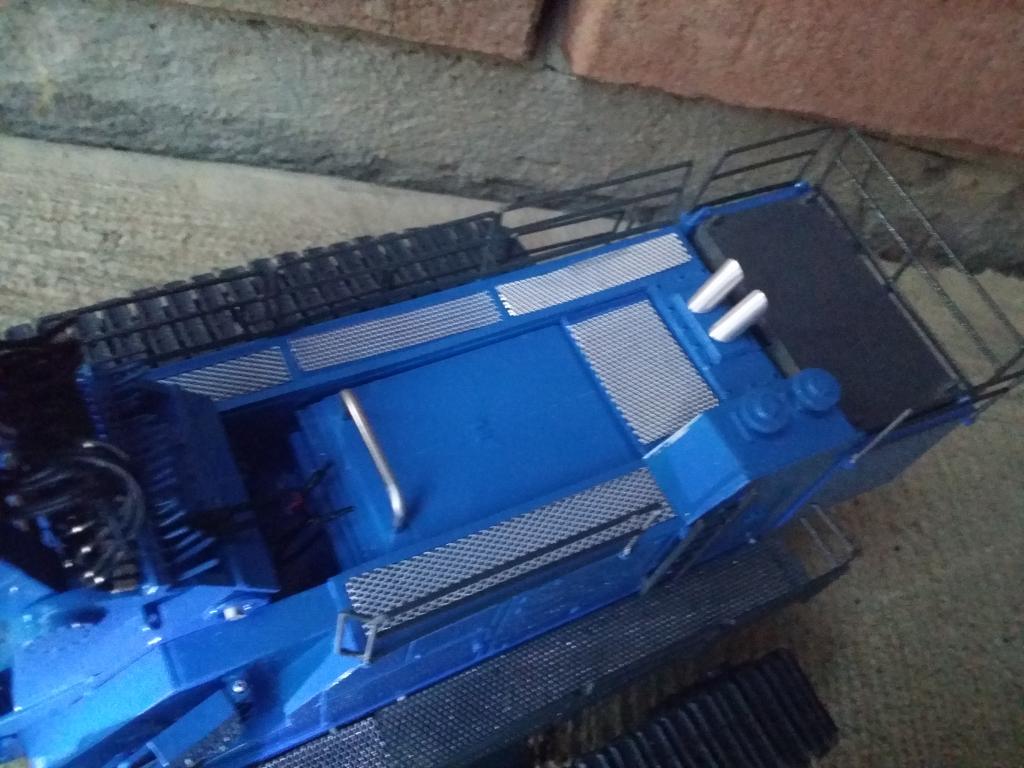

You can see the electronics fit nicely into the house which I designed to fit a 9v battery, switch and wiring nicely and out of site. The switch is the rear deck plate on the panel. I made it so you just need to press down on the plate to turn on and off. Nice little feature to hide the swtch out of site. The panel is also held in place by a magnet, you just pull on the railing on the front to the panel to take off the cover.
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/20140705_214926_zpsz2mchkol.jpg.html] [/URL]
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/20140706_204230_zpsdazfqvkp.jpg.html] [/URL]

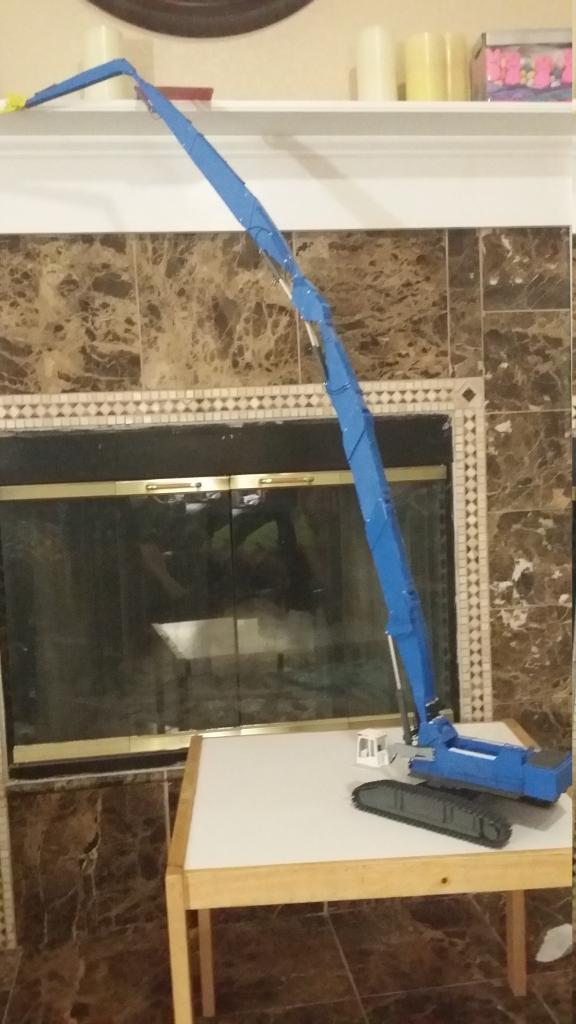

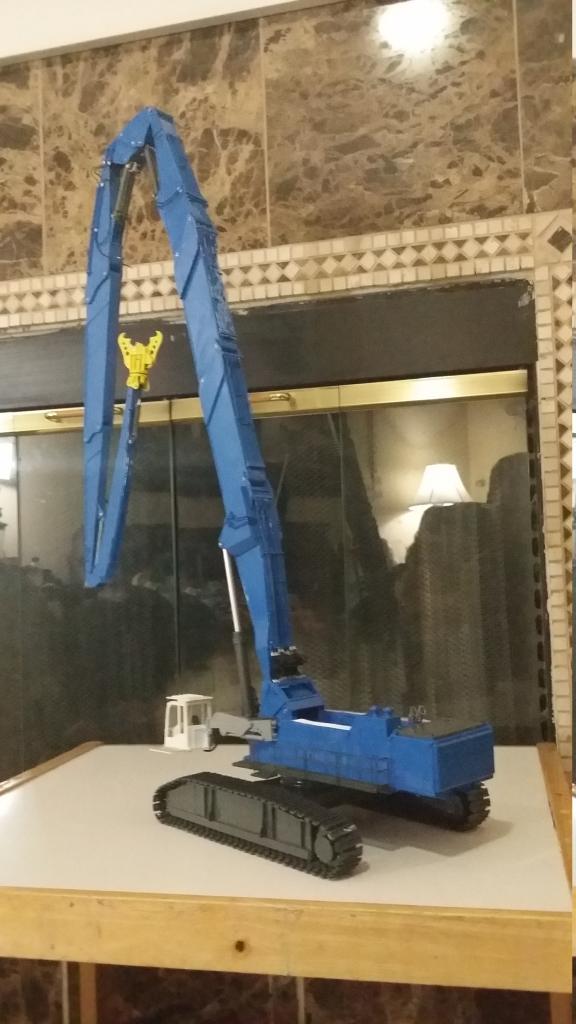

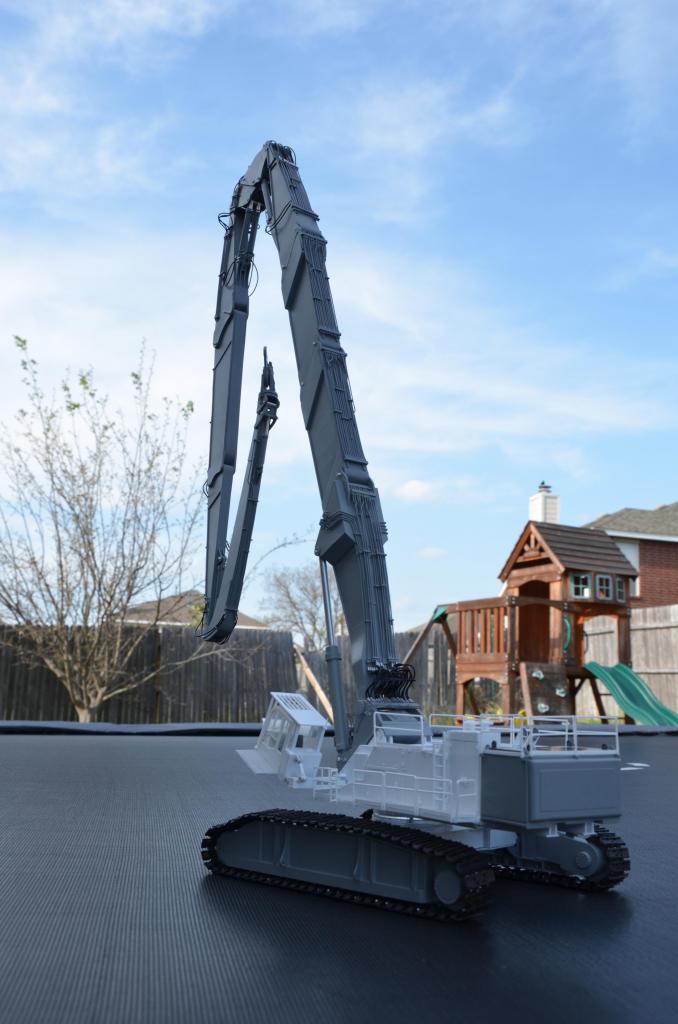

I also have the long boom painted just need to fix a section to keep the boom from bending to the left.
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/20140702_213329_zpscmihua6n.jpg.html] [/URL]
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/20140702_213729_zpsaaablnlj.jpg.html] [/URL]
Only thing left to do is get some tinted plexi for the cab windows and make a lot of hoses for the booms
What do you guys think of this
Jason
--
http://www.jaynikl.piczo.com/?cr=1 |
| |
|
|
046 — Direktlink
07.07.2014, 07:10 Uhr
Gast:LKWundMEHR
Gäste
|
Great Jason! |
| |
|
|
047 — Direktlink
07.07.2014, 10:03 Uhr
baggerphil
|
Excellent work, Jason
I followed your thread on DHS since you began there, and I'm really impressed of how the model turned out at the end!
I also like your idea with the nicely hidden switch for the LEDs! Hope to see more of your demolition beast soon...
--
Copyright liegt bei mir!
Grüsse aus der Schweiz
Phil |
| |
|
|
048 — Direktlink
07.07.2014, 21:53 Uhr
marc815
|
Hello
Very Great Job, awesome :-)
Marc |
| |
|
|
049 — Direktlink
11.07.2014, 03:55 Uhr
Jason
|
Thanks guys this has been a awesome project to under take.

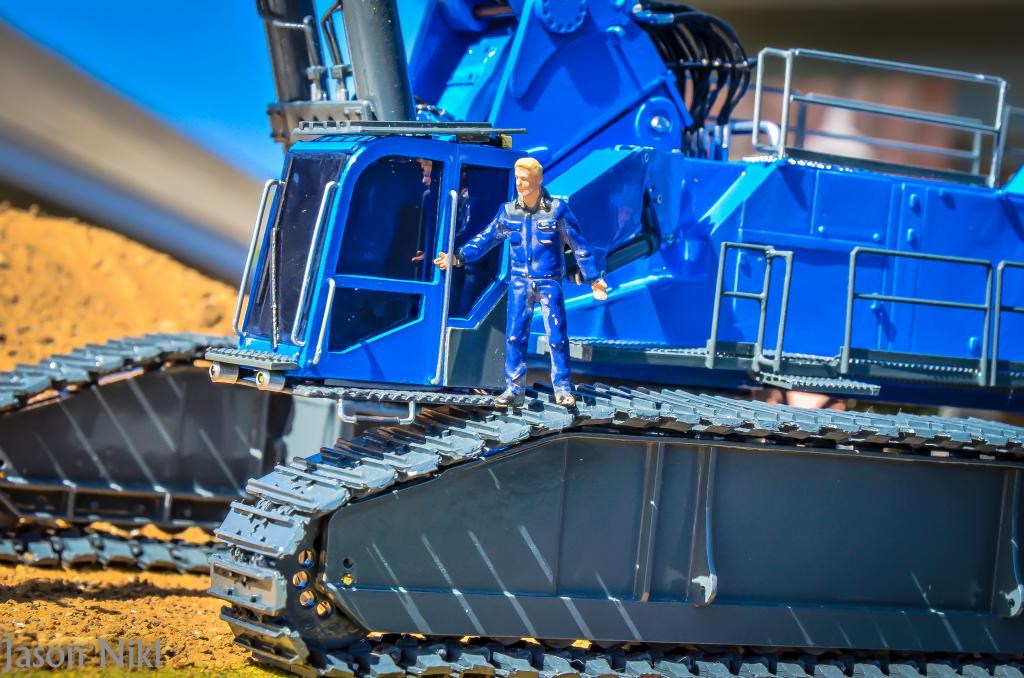

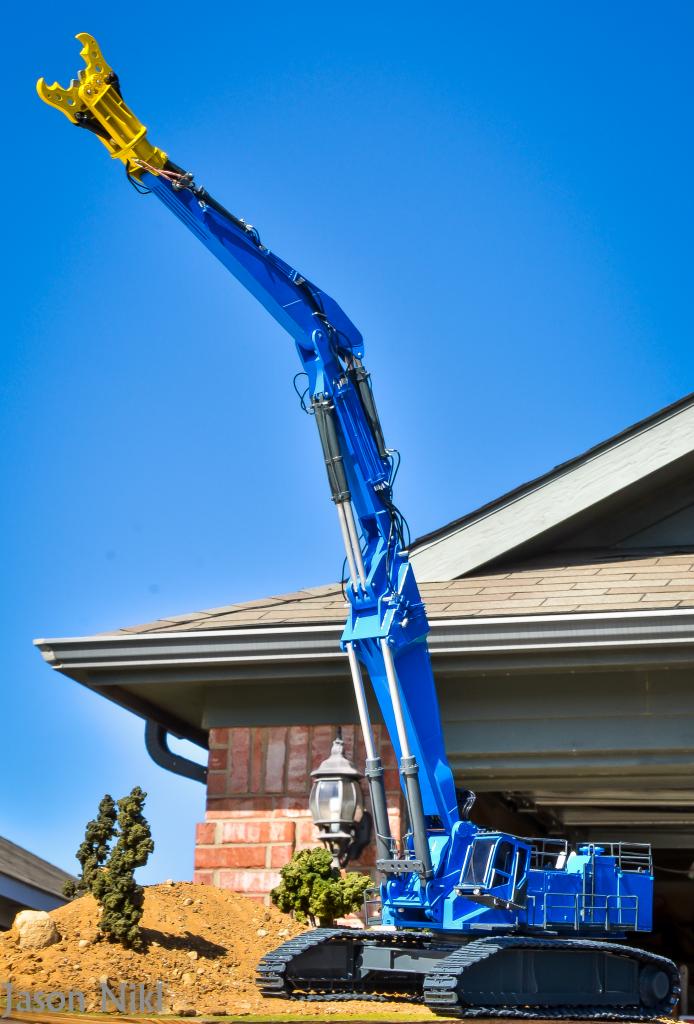

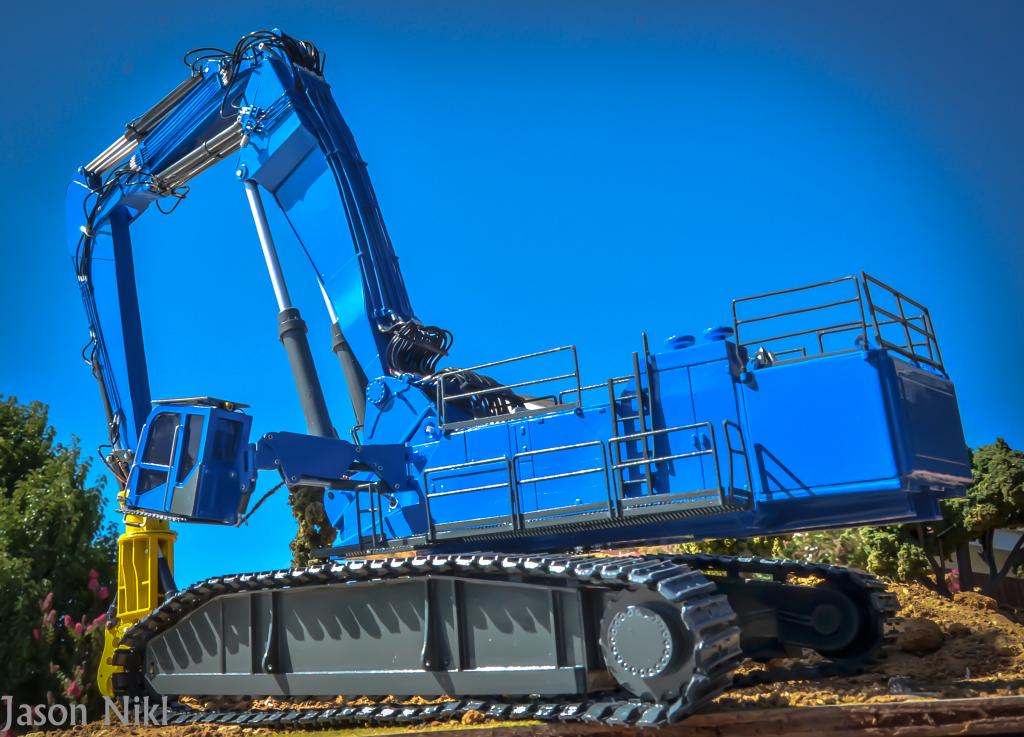

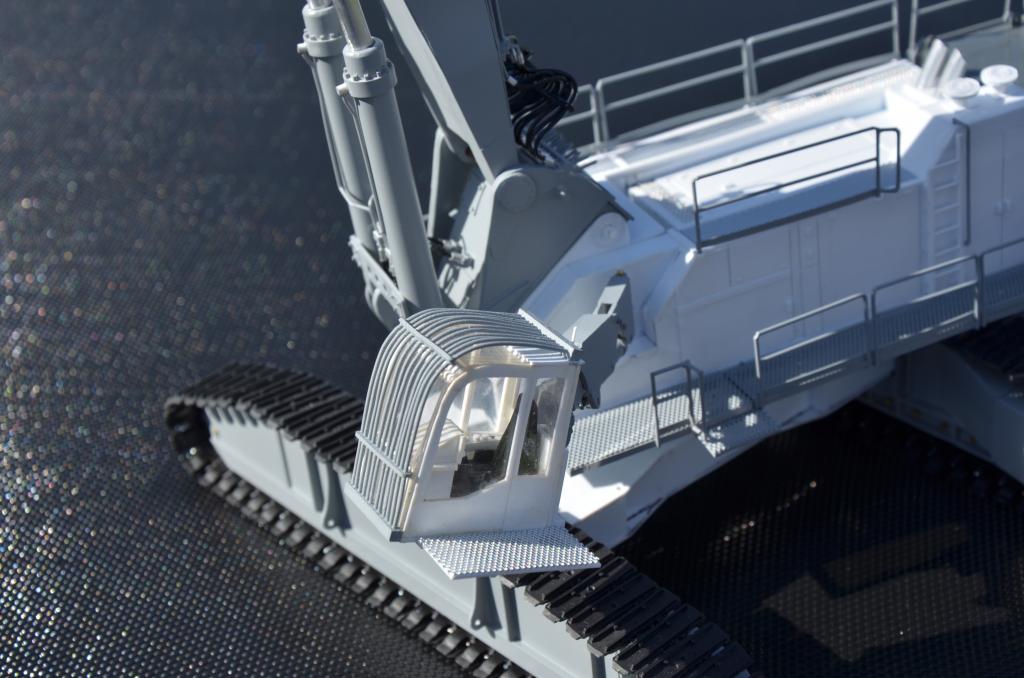

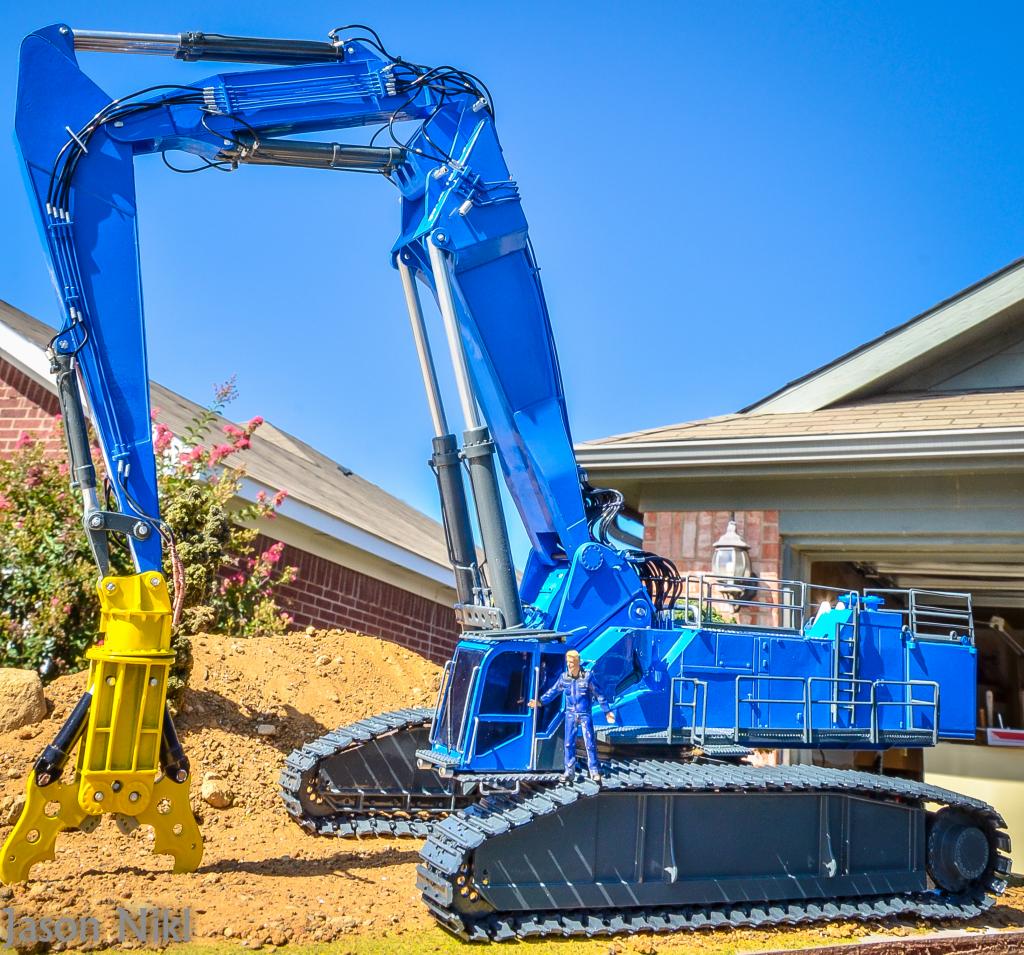

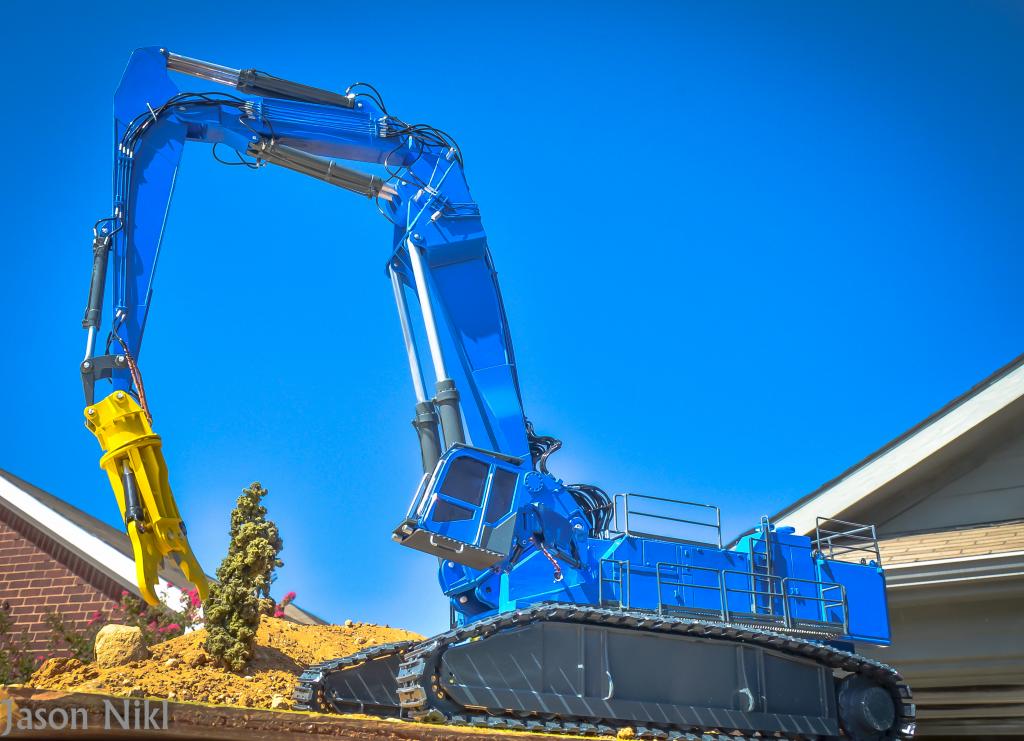

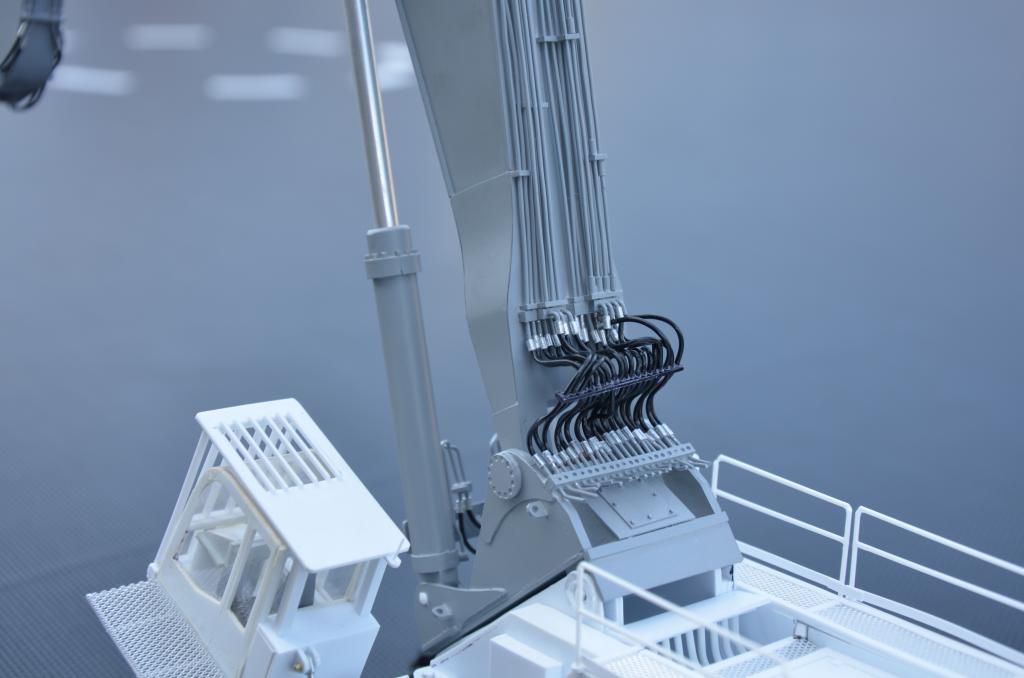

I finished the cab with tinted windows handrails, steps and a windshield wiper. Also added all the hyd. hoses to the boom
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/d300g_zps75cd2d99.jpg.html] [/URL]
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/d300h_zps26e6ff04.jpg.html] [/URL]
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/d300i_zpsa333fea0.jpg.html] [/URL]
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/d300j_zps11a7dcfc.jpg.html] [/URL]
[URL=http://s165.photobucket.com/user/jaynikl/media/R300D/d300k_zpscccabc9b.jpg.html] [/URL]
--
http://www.jaynikl.piczo.com/?cr=1 |
| |
|
|
