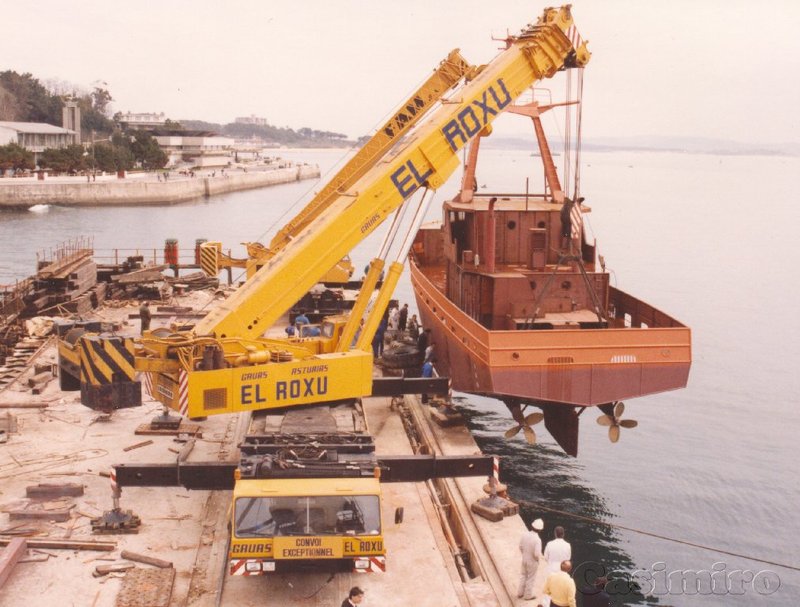

000 — Direktlink 27.08.2009, 23:16 Uhr Kasi Hello!!!. I have the "drawing-plane" of the LT 1140 but I need the "drawing-plane" of the LT 1160. In baumaschinen-modelle.net say about LT 1160: "The superstructure of the LT 1160 is longer than that of the LT 1140, which is located centrally above the cab about a fourth axis." Please, someone can tell me what are the measures differences between LT 1140 and LT 1160. One picture of LT 1160 EL ROXU(ROXU) and LT 1120 FAM Thank you very much and best regards, Casimiro.- Dieser Post wurde am 07.09.2009 um 20:54 Uhr von Hendrik editiert. Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

001 — Direktlink 28.08.2009, 08:07 Uhr robertd Hola Casimiro, Saludos, Robert Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

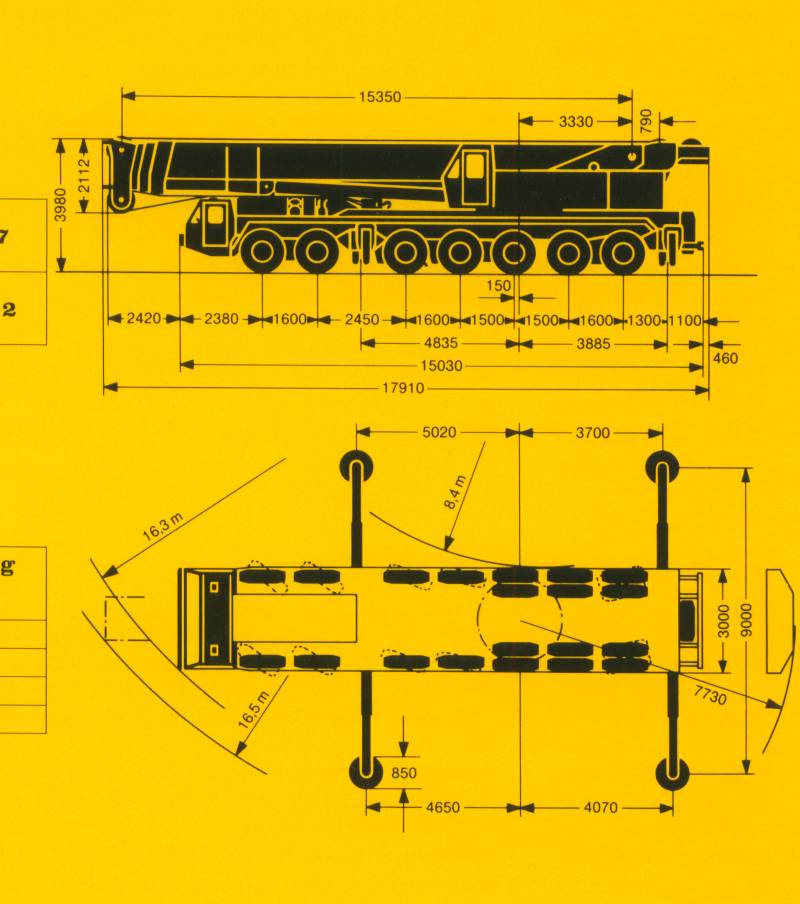

002 — Direktlink 28.08.2009, 08:09 Uhr Kristoffer Here you go Kasi... Picture shows the 50 meter version. -- Grüße / Greetings Kristoffer Liebherr Datasheets Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

003 — Direktlink 28.08.2009, 08:10 Uhr Kristoffer Good morning Robert -- Grüße / Greetings Kristoffer Liebherr Datasheets Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

004 — Direktlink 28.08.2009, 08:16 Uhr robertd good morning kristoffer, looks like i picked the right drawing cu, robert Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

005 — Direktlink 28.08.2009, 09:03 Uhr Kasi Good morning to you both and thank you very much for the "drawing-plans"!!!... At first glance, the chassis are same... Regards, Casimiro.- Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

006 — Direktlink 28.08.2009, 09:05 Uhr Sebastian Suchanek Admin Thanks guys. Obviously I was mistaken with the statement in my identification manual - I shall correct it sometime soon... Bye, Sebastian -- Baumaschinen-Modelle.net - Schwerlast-Rhein-Main.de Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

007 — Direktlink 28.08.2009, 09:31 Uhr Kasi Ohhh, I´m sorry Sebastian, I know you in this forum but I didn´t know that the page is yours... Thank you very much for everything information that you offer in she... Someone has a picture of the left side???. Thanks and regards, Casimiro.- Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

008 — Direktlink 28.08.2009, 12:24 Uhr Hendrik Moderator Zitat: Kasi postete Someone has a picture of the left side??? Oliver Thum posted two pictures from both the right and left side of the LT 1160 from Schmidbauer Munich (crane 352): https://www.hansebubeforum.de/showtopic.php?threadid=5776&pagenum=1#44768 But that's the only picture from a left side that I know.... cheers Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

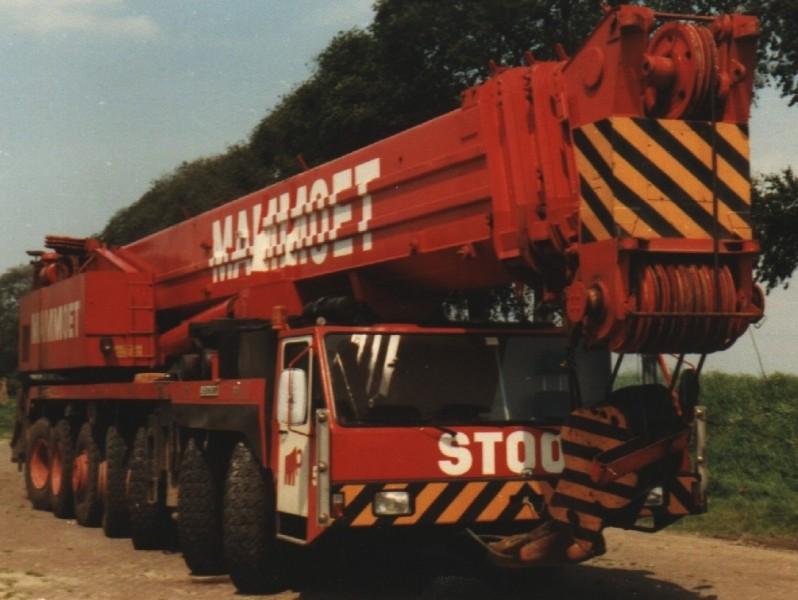

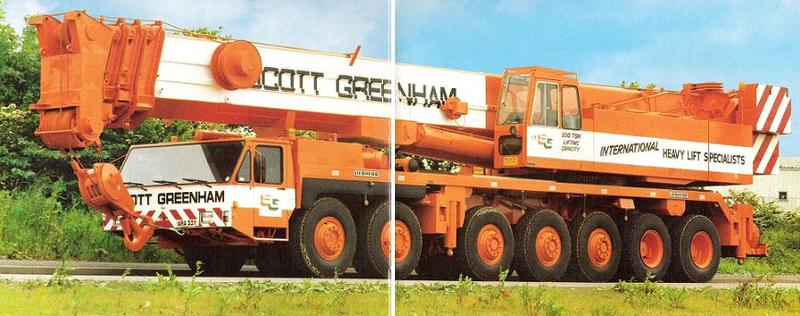

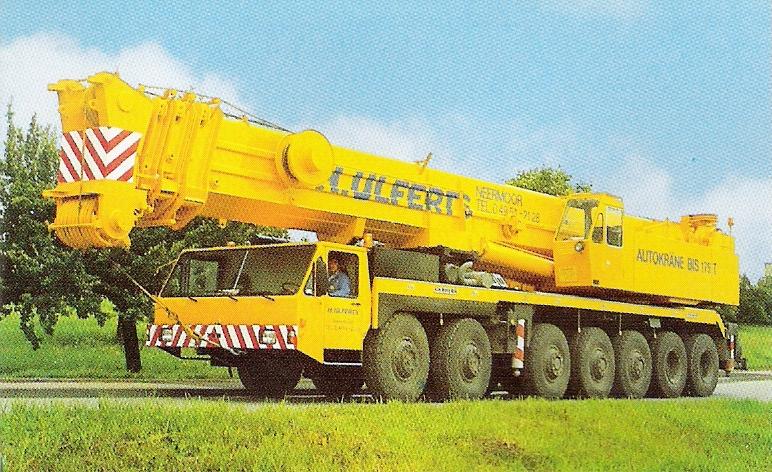

009 — Direktlink 28.08.2009, 16:00 Uhr Kasi Thanks Hendrik!!!. A photo of LT 1160 MAMMOET: - I´m sorry, but I don´t know who is the picture author... I have found IN a LIEBHERR prospect(P 69.1.4.85) two LT 1160: - LT 1160 SCOTT GREENHAM: - LT 1160 M.ULFERTS: Regards, Casimiro.- Dieser Post wurde am 28.08.2009 um 16:53 Uhr von Kasi editiert. Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

010 — Direktlink 07.09.2009, 18:55 Uhr Cris Modderman Kasi, Are you sure about that Scott Greenham machine? I think it is a LT 1200 S. Regards, Cris Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

011 — Direktlink 07.09.2009, 19:16 Uhr robertd Hi, [EDIT] Forget it - the data sheet shows axles 5 to 7 with twin tyres, but the description tells that only axle 6 and 7 have twin tyres. So only the different upper cab on the Scott Greenham machine indicates an LT 1200 S.[/EDIT] cu, robert Dieser Post wurde am 07.09.2009 um 19:25 Uhr von robertd editiert. Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

012 — Direktlink 07.09.2009, 20:46 Uhr kerst Zitat: Cris Modderman postete Kasi, Are you sure about that Scott Greenham machine? I think it is a LT 1200 S. Regards, Cris You are right, Cris, It is an LT1200S Kerst Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

013 — Direktlink 07.09.2009, 21:20 Uhr Kasi I´m sorry!!!. I thought it was the LT 1160, because I think only difference in relation with LT 1160 H.Ufferts is the cab of the crane... I'm not quite sure whether LT Scott Greenham is LT 1160... Regards, Casimiro.- Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

014 — Direktlink 09.09.2009, 23:52 Uhr kraandoc Zitat: Kasi postete Hello!!!. I have the "drawing-plane" of the LT 1140 but I need the "drawing-plane" of the LT 1160. In baumaschinen-modelle.net say about LT 1160: "The superstructure of the LT 1160 is longer than that of the LT 1140, which is located centrally above the cab about a fourth axis." Please, someone can tell me what are the measures differences between LT 1140 and LT 1160. One picture of LT 1160 EL ROXU(ROXU) and LT 1120 FAM Thank you very much and best regards, Casimiro.- The LT 1160 was introduced in 1980 with 50 m mainboom, 21 ton counterweight and a 7-axle carrier, in 1981 the counterweight was uprated to 24 ton. In 1982 the LT 1160 was introduced with 45 m mainboom, 24 ton counterweight. Toggenburger of Winterthur Switzerland was the owner of a LT 1160 with 45 m mainboom. Dieser Post wurde am 10.09.2009 um 00:09 Uhr von kraandoc editiert. Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

015 — Direktlink 10.09.2009, 00:32 Uhr kraandoc Zitat: Kasi postete I´m sorry!!!. I thought it was the LT 1160, because I think only difference in relation with LT 1160 H.Ufferts is the cab of the crane... I'm not quite sure whether LT Scott Greenham is LT 1160... Regards, Casimiro.- In 1982 the LT 1180 was introduced with 50 m mainboom and 30 ton counterweight on a 7-axle carrier. In 1983 they changed the designation to LT 1200 S. The letter S indicates the difference with the LT 1200 with 55 m mainboom. Besides Scott-Greenham (GB) also Sparrows (GB), Laden (GB) and van Marwijk (NL) were owners of a LT 1200 S. Dieser Post wurde am 10.09.2009 um 00:36 Uhr von kraandoc editiert. Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

016 — Direktlink 10.09.2009, 01:08 Uhr Kasi Hello!!!. Very good explanation, kraandoc... It´s clear, LT Scott Greenham is LT 1200 S... Thank you very much, Casimiro.- Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

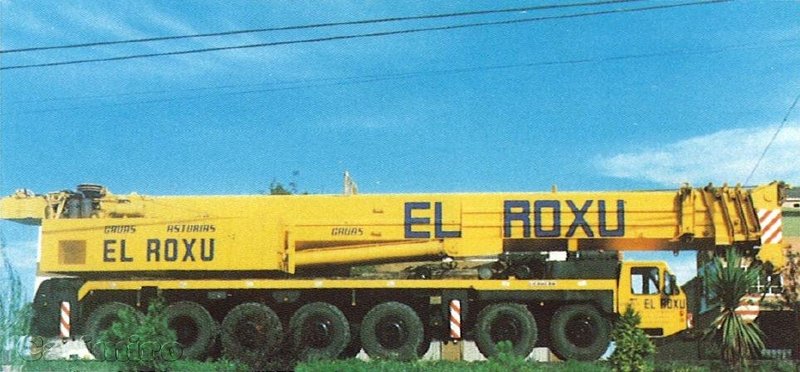

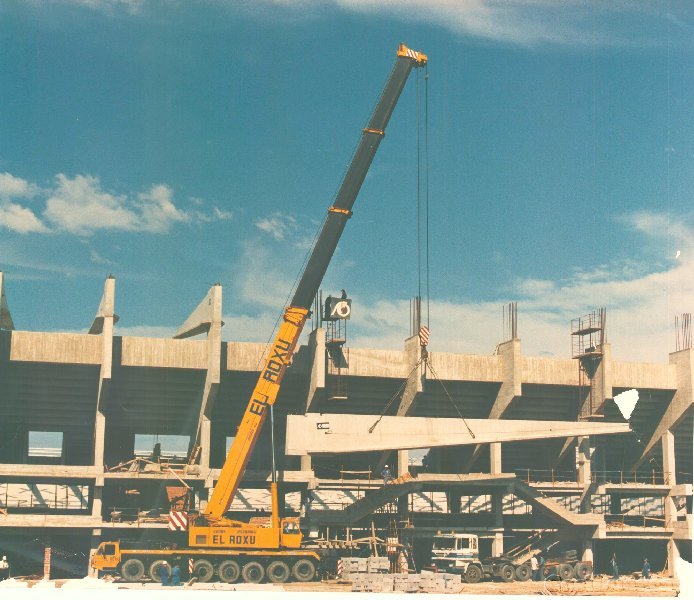

017 — Direktlink 07.12.2009, 22:50 Uhr Kasi Hello!!!. More picturesof LT 1160 EL ROXU: Please visit: LT 1160 EL ROXU Casimiro.- Dieser Post wurde am 07.12.2009 um 22:52 Uhr von Kasi editiert. Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

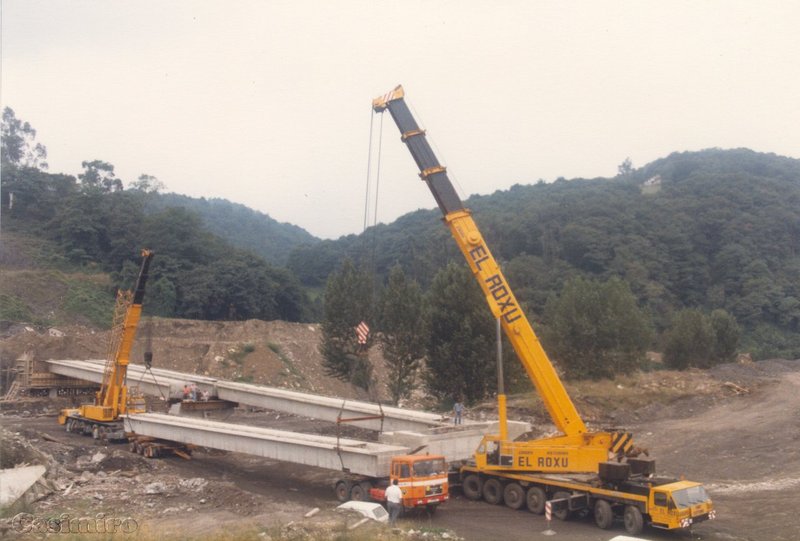

018 — Direktlink 08.12.2009, 22:20 Uhr Hendrik Moderator Zitat: Kasi postete Klasse Bild....die Achslasten des MAN müssen ja gigantisch sein.... (the rear axle loads of the MAN must have been massive...with that concrete beam... ) gruß hendrik Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

019 — Direktlink 08.12.2009, 22:49 Uhr Kasi Zitat: Hendrik posteteKlasse Bild....die Achslasten des MAN müssen ja gigantisch sein.... (the rear axle loads of the MAN must have been massive...with that concrete beam... ) But no problem, this is a truck of the 80´s... Very strong iron... Casimiro.- Dieser Post wurde am 08.12.2009 um 23:08 Uhr von Kasi editiert. Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

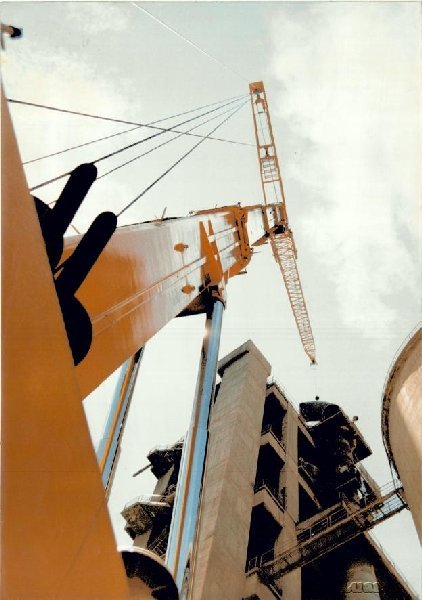

020 — Direktlink 13.04.2010, 23:47 Uhr Kasi Hello!!! Two pictures about LT 1160 EL ROXU: Regards, Casimiro.- Dieser Post wurde am 13.04.2010 um 23:48 Uhr von Kasi editiert. Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
