Hello, my previous diorama is finished, so I start a new one. The entire idea is simple: two LT 1100 lifting in tandem some hydraulis press (machinery). The idea is based on theese photos:
https://www.hansebubeforum.de/extern/dienstleister/img440.imageshack.us/img440/8274/lt1300s14gv.jpg

https://www.hansebubeforum.de/extern/dienstleister/img812.imageshack.us/img812/6448/volvo10.jpg

https://www.hansebubeforum.de/extern/dienstleister/img821.imageshack.us/img821/9007/schelde3kranen.jpg

Instead of using two LT1300 I will use smaller ones LT1100, so I may also scale down the size of the press. I found nice one on the net:

https://www.hansebubeforum.de/extern/dienstleister/img29.imageshack.us/img29/9397/smeral4000a.th.jpg
https://www.hansebubeforum.de/extern/dienstleister/img64.imageshack.us/img64/5587/smeral.th.jpg

I want ask you, if someone have any other pictures of cranes lifting a machinery in industrial buildings, please post them here, or paste a link.

thanks Samin
--
no german, only english :-I
greetings from Czech Republic

Dieser Post wurde am 09.12.2010 um 09:56 Uhr von Sebastian Suchanek editiert.
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
001 — Direktlink
09.12.2010, 09:35 Uhr
SaminCZ



And now the kibri models, I have both ready to surfacer.

first one will be Van Seumeren
https://www.hansebubeforum.de/extern/dienstleister/img138.imageshack.us/img138/2692/0832a.jpg
and other one will be Nederhoff
https://www.hansebubeforum.de/extern/dienstleister/img130.imageshack.us/img130/4376/mlt1100.jpg

It will make nice color combination, black and yellow. Better than having two black cranes together from "bulding diorama" purposes.

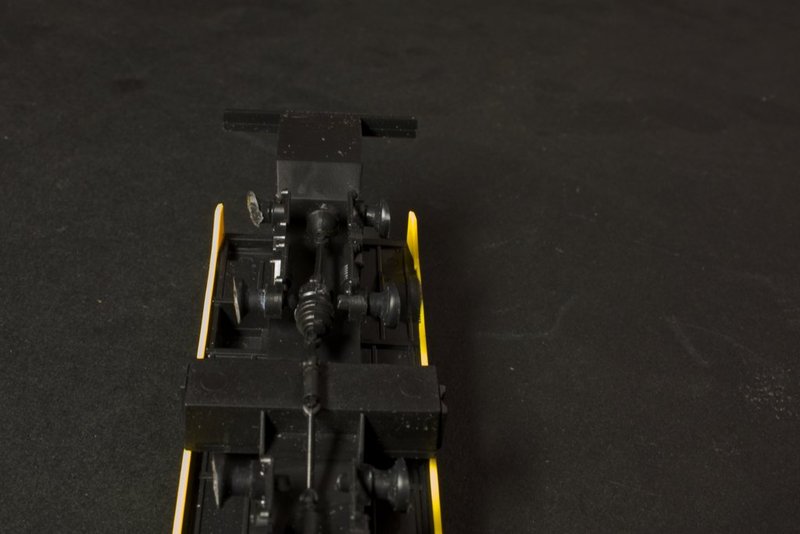

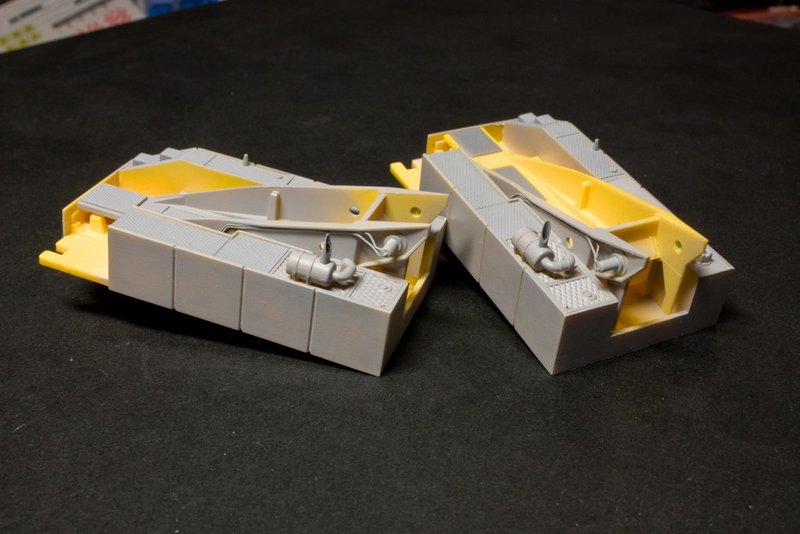

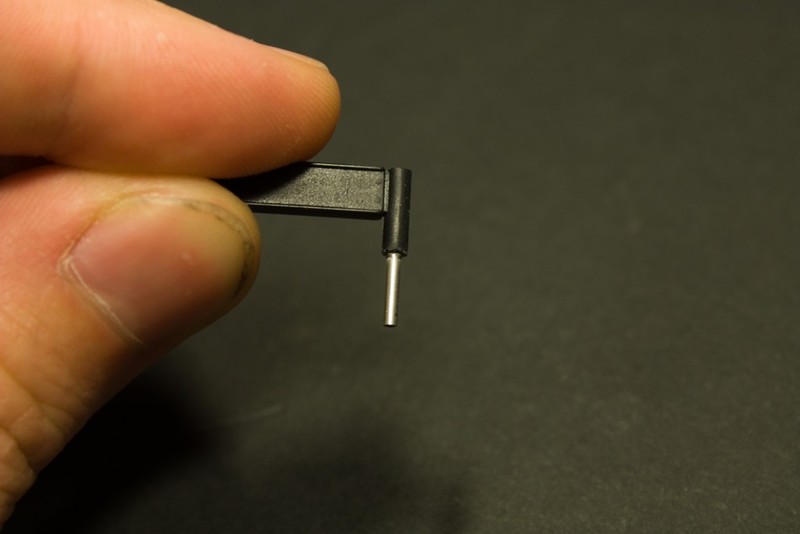

One crane will have steered wheels, so I made some upgrade on chassis and wheels:

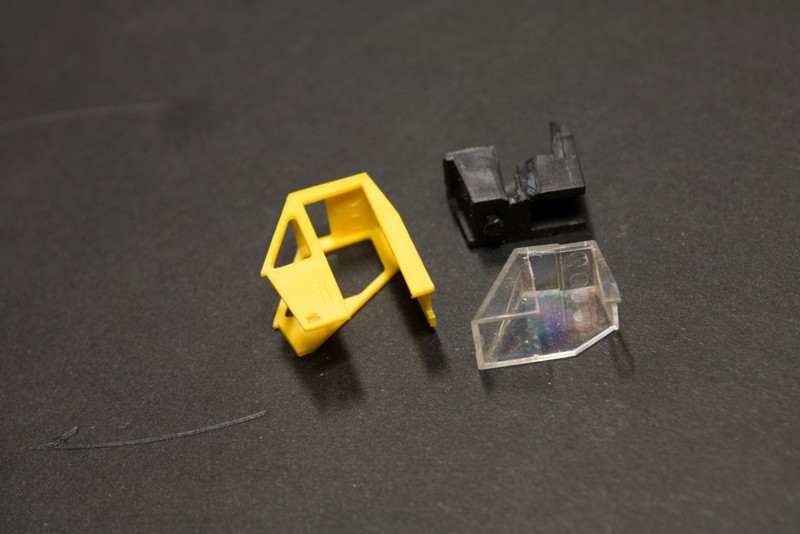

I also changed some other details in order to transform a rather "toy" look of the kibri model to regular scale model look, so I added hydraulics, but I havent yet took photos, so later.






thanks for watching and feel free to comment
--
no german, only english :-I
greetings from Czech Republic

Dieser Post wurde am 09.12.2010 um 09:56 Uhr von Sebastian Suchanek editiert.
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
002 — Direktlink
10.12.2010, 08:33 Uhr
SaminCZ

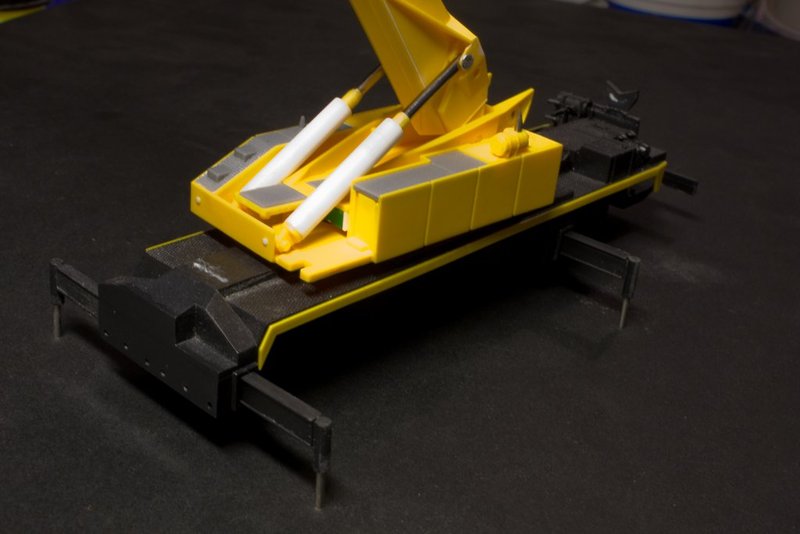

Some hydraulics added

--
no german, only english :-I
greetings from Czech Republic
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
003 — Direktlink
30.01.2011, 19:59 Uhr
SaminCZ



Update:

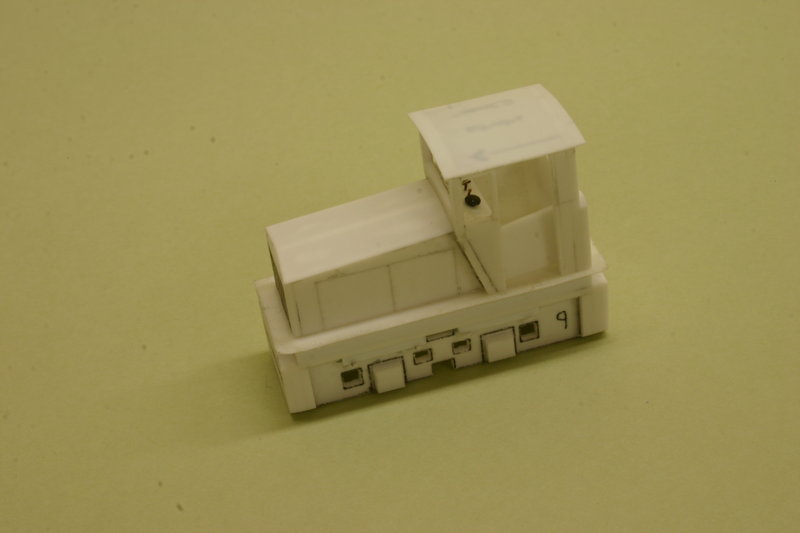

narrow gauge loco scratched from plastic sheet (no finished on the photo)


and I´m about to start making a base for the whole scenery, so this is a maschup of all components beeing positioned to the best look.


The biggest task is close..I made a drawing of the big "mechanical double cranck four point press" ERFURT in Corel Draw, so this week I´m going to start scratching.
--
no german, only english :-I
greetings from Czech Republic
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
004 — Direktlink
14.04.2011, 12:44 Uhr
SaminCZ



rather big update:

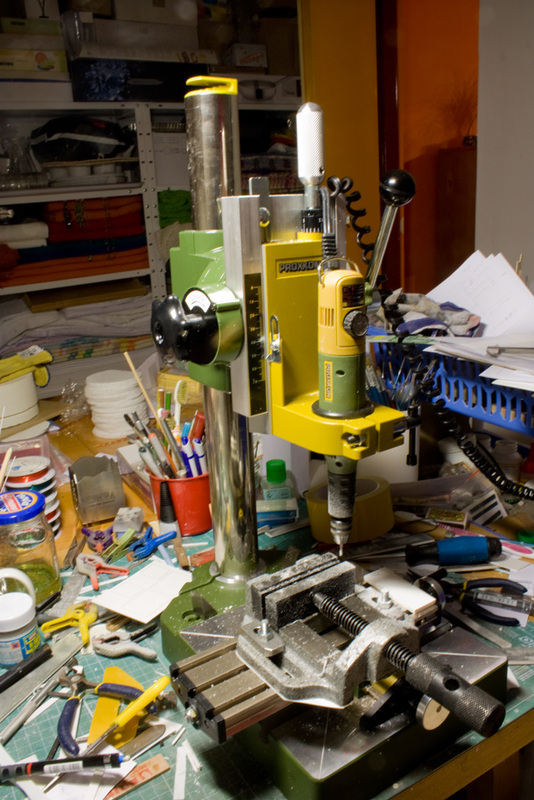

my new toy for scratchbuilding...awesome tool with impressive results

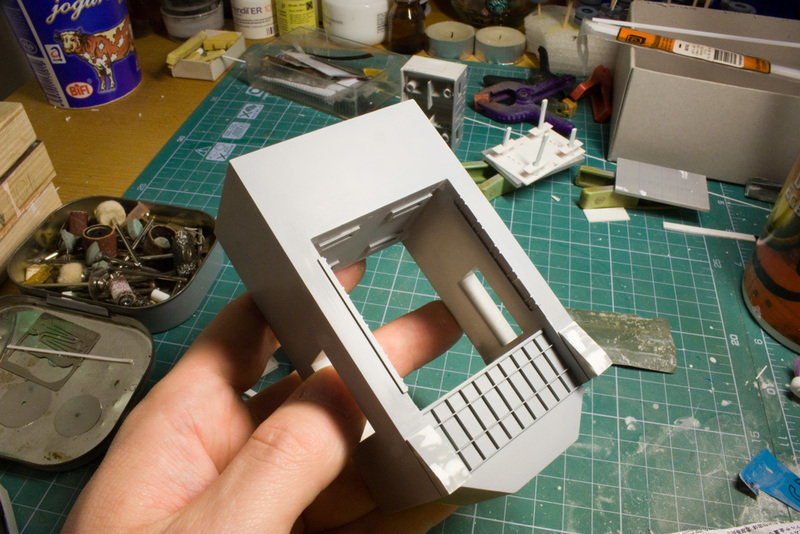

The press glued together from plastic card

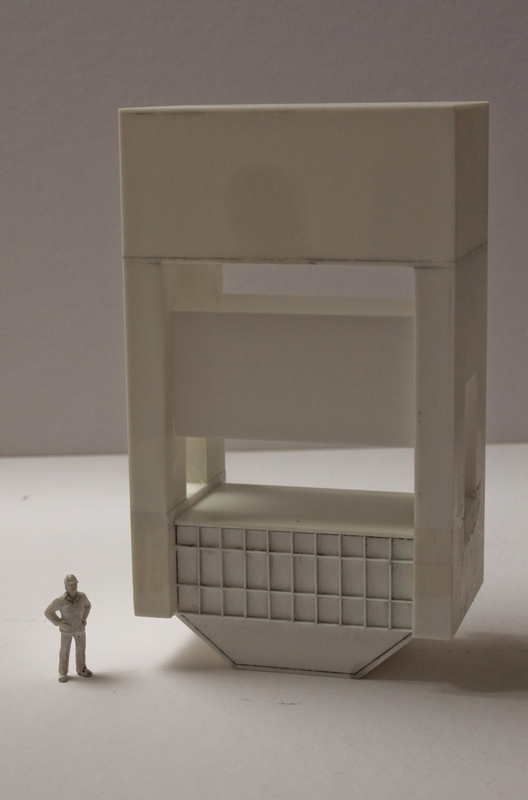

Comparism between machinery and worker....

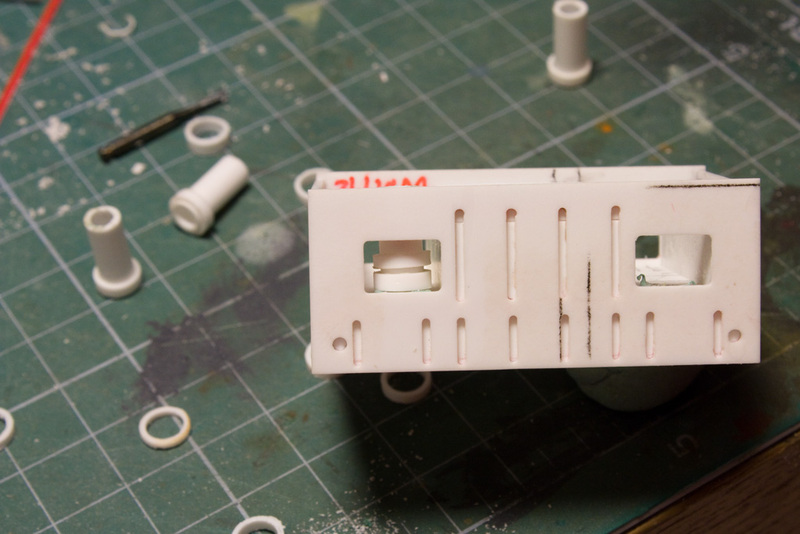

slide made with proxxon mill

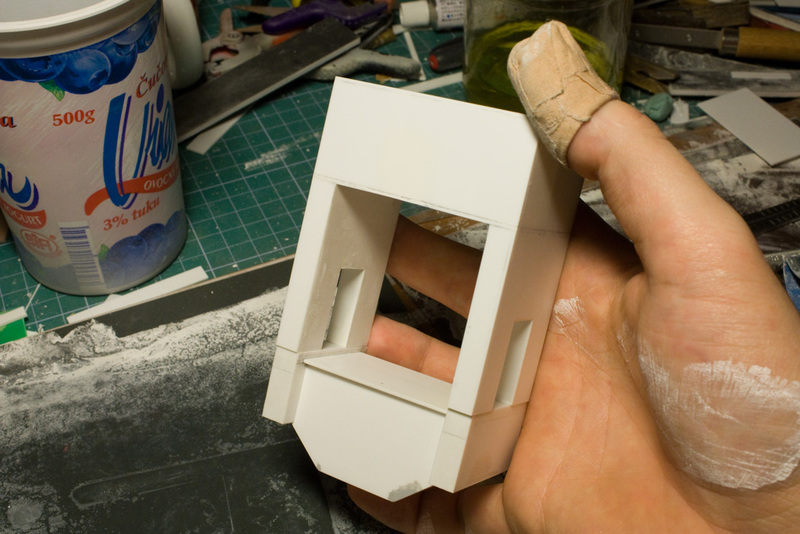

Press is sanded, and primer is applied, next I will add some details

making diorama in progress

--
no german, only english :-I
greetings from Czech Republic
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
005 — Direktlink
14.04.2011, 21:02 Uhr
kees



great job!!!
--
Groetjes van Kees uit HOLLAND
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
006 — Direktlink
15.04.2011, 10:16 Uhr
Sox



Wow! It looks great!
The scene looks very good and your models are great!

I can hardly wait for new pics!
--
Viele Grüße
Sven
- - - - - - - - - - - - - - - - - -
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
007 — Direktlink
13.06.2011, 11:30 Uhr
SaminCZ



Thanks for watching and I will add a little more now...
I have visited a closed/abandoned factory where one of the erfurt presses (the 1000ton one) still wait for a byuer..... I took there many photos and I added some details to my small one 1/87 press according to the photos...

BUT....have a problem...Do you someone know in which years the LT 1120 was produced? I want to add some historical accesories but before I will do it I need to know in what decade I have to focus for it...(Adding an old forklift...etc.) It is possible to backdate this diorama to the early 1990´? Many thanks for the help.


the "electro-powerplant" part of the press located on the roof

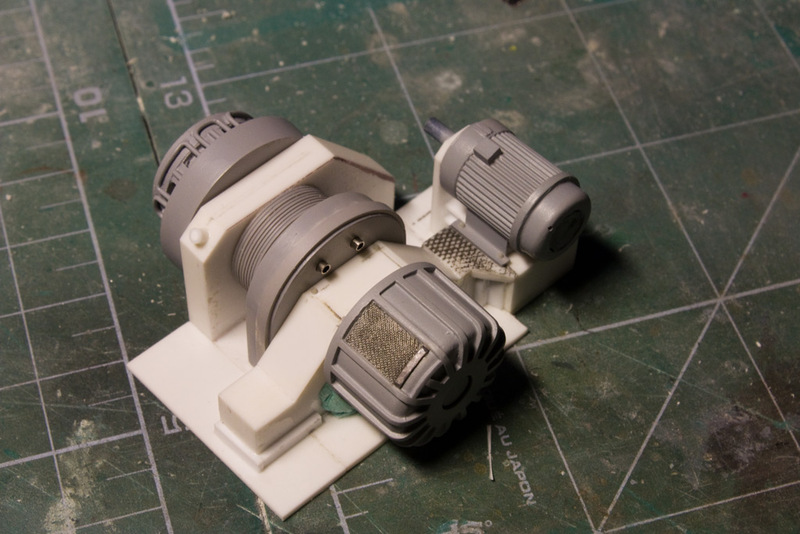

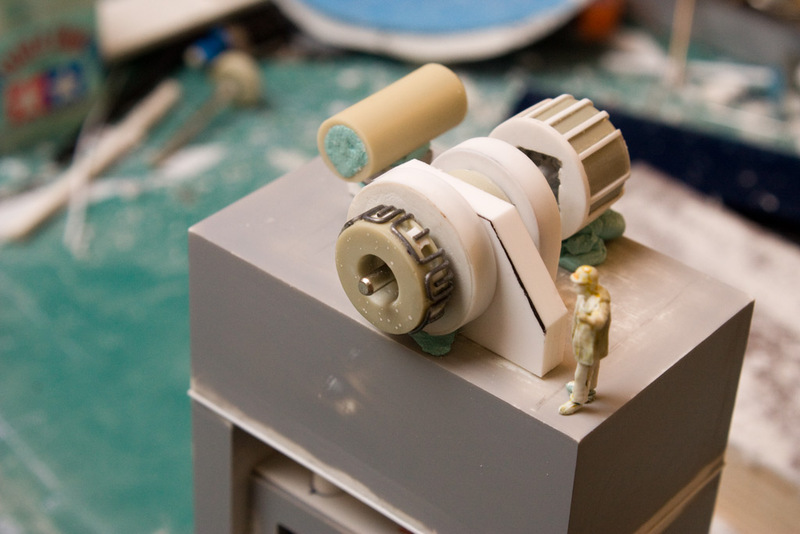

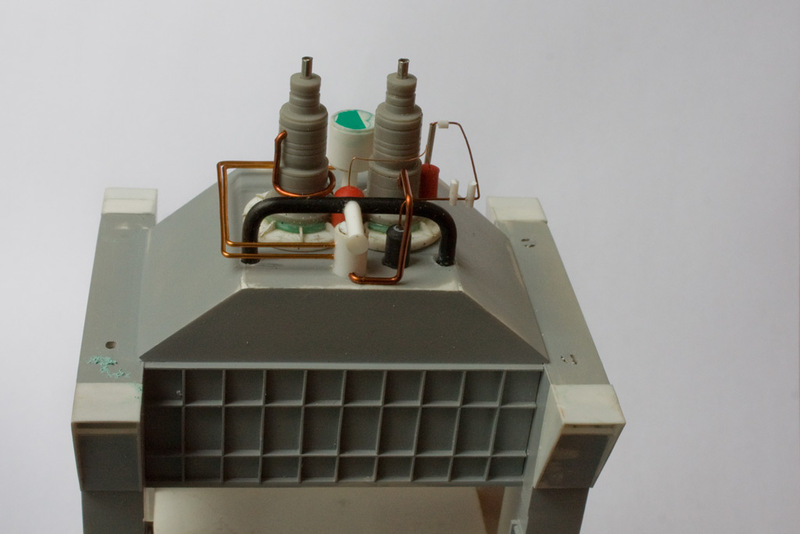

"kissenagregat" which consists of two huge hydraulic cylinders and many wiring and pipes on the bottom.

--
no german, only english :-I
greetings from Czech Republic
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
008 — Direktlink
13.06.2011, 12:37 Uhr
Hendrik
Moderator
Avatar von Hendrik

Wow!!
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
009 — Direktlink
13.06.2011, 13:32 Uhr
Stingray70

Avatar von Stingray70

Very nice build, with many good details...
--
Ove


No problem is so big or so complicated that it can't be run away from. ~ Charles Schulz.
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
010 — Direktlink
13.06.2011, 18:49 Uhr
Martin Mayer



Hall SaminCZ


Einfach Genial da bin ich gespannt wie es weitergeht beide Daumen Hoch

lg

Martin
--
3D Druck, es geht doch nicht ohne
1A Decaldruck Zone!
1A Modellbau Zone
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
011 — Direktlink
13.06.2011, 19:11 Uhr
hendrik mayer



Sauber gemacht echt schöne Details!!!
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
012 — Direktlink
13.06.2011, 23:11 Uhr
JSC




Zitat:
SaminCZ postete

BUT....have a problem...Do you someone know in which years the LT 1120 was produced? I want to add some historical accesories but before I will do it I need to know in what decade I have to focus for it...(Adding an old forklift...etc.) It is possible to backdate this diorama to the early 1990´? Many thanks for the help.


Hi Samin,

I found with Google some ads of LT 1120 for sale which were built 1977 and 1981.

Very nice project - congratulation!
--
Schöne Grüße,
Josef
www.vorbildundmodell.net
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
013 — Direktlink
14.06.2011, 14:03 Uhr
SaminCZ



Thanky you all for compliments...
JSC: thanks for founding the years. I have also found that the production was done in pre- and early 1980´.

This build will be after finishing published in czech scale modelling magazine....and it will be the very first time 1/87 crane kit/diorama in scale modelling magazine in czech.
--
no german, only english :-I
greetings from Czech Republic
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
014 — Direktlink
14.06.2011, 19:45 Uhr
Peter Aschauer

Avatar von Peter Aschauer

Hi Sami great modell!

now you can make electricity at your Modell produce light all your lamps allow. :-)

Peter
--
Eigene Modellspedition im Maßstab 1:87
Diverse Modelle in 1:50
Hauptaufgabengebiet
Schwertransporte, und alles andere was transportiert werden muss!
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
015 — Direktlink
27.09.2011, 08:28 Uhr
SaminCZ



It´s time to move on, press is now out of production line and I work on other stuff.

Very important (may the most..) thing in diorama´s are figures...I have 3 sets of preiser ones, but without some care, they are unacceptable. So first get off the paint, next sand the moulding seams and finally make new fabric folds by scratching with the scalpel. At the end the total amount of 15 figures will be present in dio.



Next is the forklif from wiking, also with some changes to make it more "old" because the dio is from early 90´ but forklift is too modern...

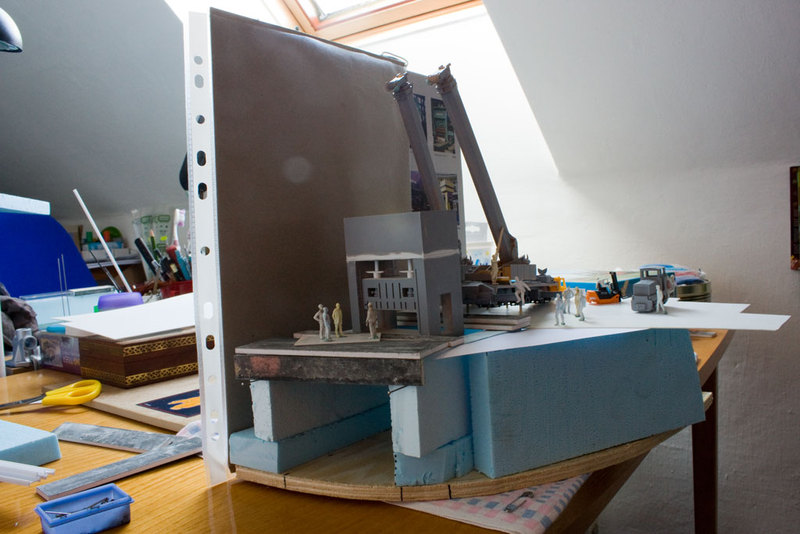

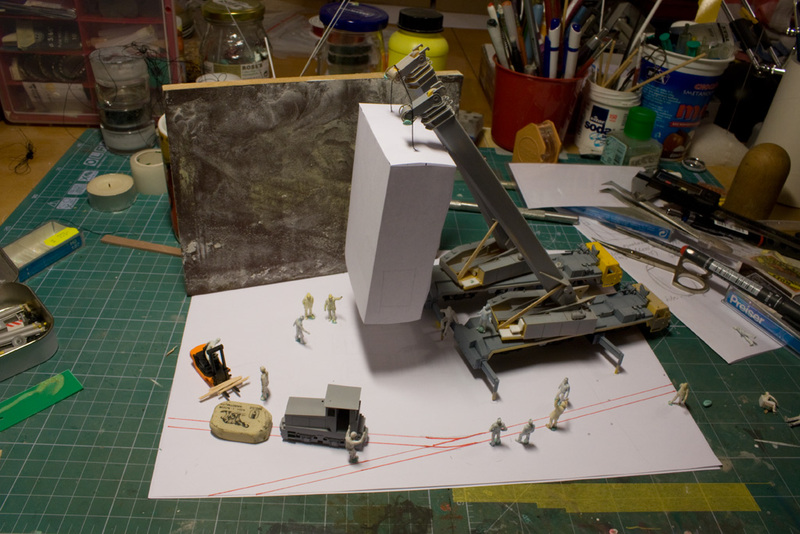

And finally the base shell...Now it is not the mass of the styrofoam and other materials...The floor is made and damaged to look like a used one.



And the base of the wall is also made, from 3mm plastic card and some evergreen profiles. The plaster is made by brush with primer Gunze Surfacer 500





thanks for watching
--
no german, only english :-I
greetings from Czech Republic
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
016 — Direktlink
27.09.2011, 15:44 Uhr
Gunder

Avatar von Gunder

Hello Samin,

this forklift is too modern, so why don´t you just buy another?

Wiking had also an older one from "Still", I think typ "R70". And from Kibri is an old "Steinbock" available...

Great work, I like to see more!

Greatings Gunder
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
017 — Direktlink
27.09.2011, 17:21 Uhr
Lenni

Avatar von Lenni

Incredible detail, very nice work!
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
018 — Direktlink
27.09.2011, 22:30 Uhr
christian41680



Hey Samin!

Great work with "high-end" details

Greets
Christian
--
Gruß
Christian

_____________________________________
TGX 41.680 XXL - Power made in AUSTRIA!!!
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
019 — Direktlink
29.09.2011, 09:41 Uhr
SaminCZ



Thanks gyus for comments

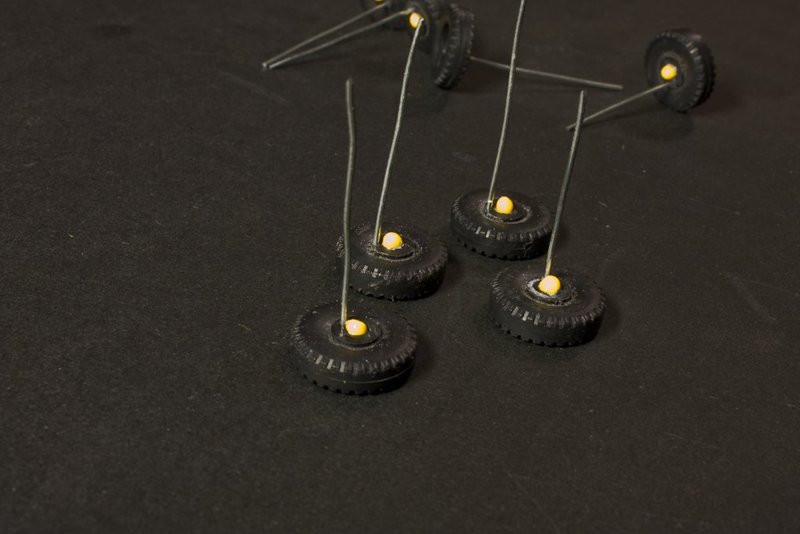

Today I want to present a trick for upgrading kibri/herpa wheels....since the wheels frequently don´t have any tire tread...This trick makes it.
This time only pictures, but if requested..I can try to translate fro czech to english. (trick is using the firelock wheel from lighter) Now the wheel will be casted/copied in resin








--
no german, only english :-I
greetings from Czech Republic
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
020 — Direktlink
29.09.2011, 10:53 Uhr
Sebastian Suchanek
Admin
Avatar von Sebastian Suchanek

Fantastic details!


Regards,

Sebastian
--
Baumaschinen-Modelle.net - Schwerlast-Rhein-Main.de
...von Laien regiert.
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
021 — Direktlink
29.09.2011, 11:15 Uhr
Gelben-Omnibusse

Avatar von Gelben-Omnibusse

Very.. very good!

Just keep on posting
--
With my best regards,
Ricardo Figueiredo
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
022 — Direktlink
07.10.2011, 02:40 Uhr
cranesg



Very nice details. How do you copy in resin?
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
023 — Direktlink
07.10.2011, 23:05 Uhr
Pegaso



Fantastic detail!, please traduction to english is needed.
Thank you, regards.
Seitenanfang Seitenende
Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
024 — Direktlink
09.10.2011, 13:20 Uhr
SaminCZ



cranesg: My friends have a company http://www.armycast.cz/ and they copy my parts for me.

Pegaso: ok here is the translation

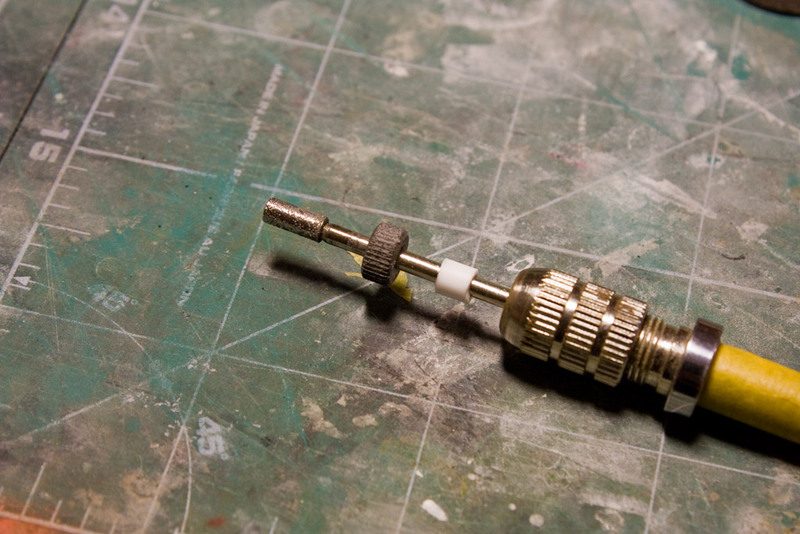

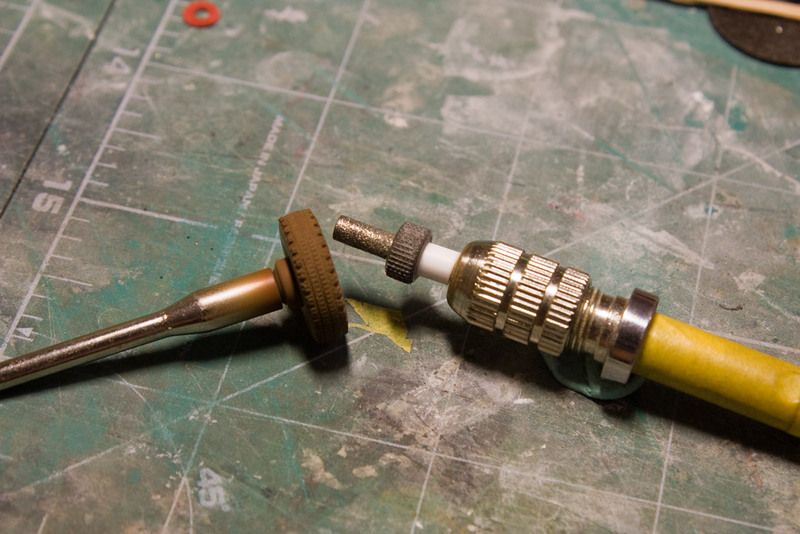

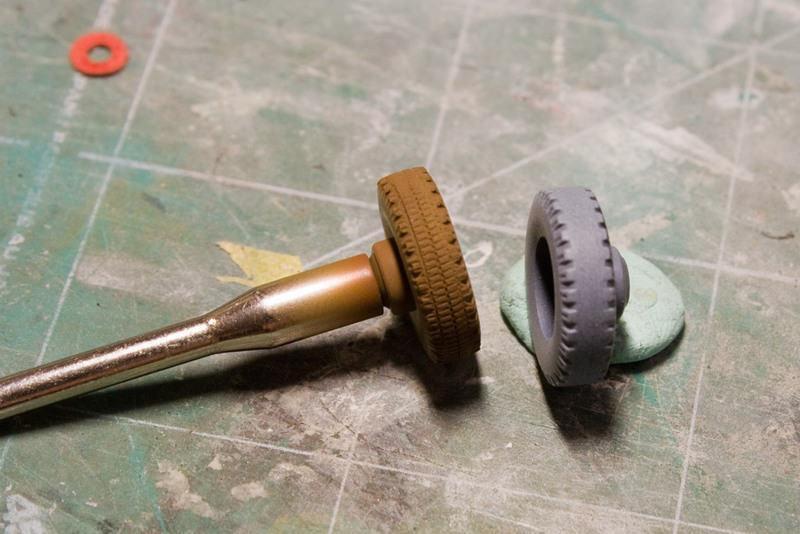

You need a firelock wheel from lighter (it has a tread which will be copied to the tire), some axle on which the wheel can rotate and some device to hold the axle...I use drill chuck from old small drill.

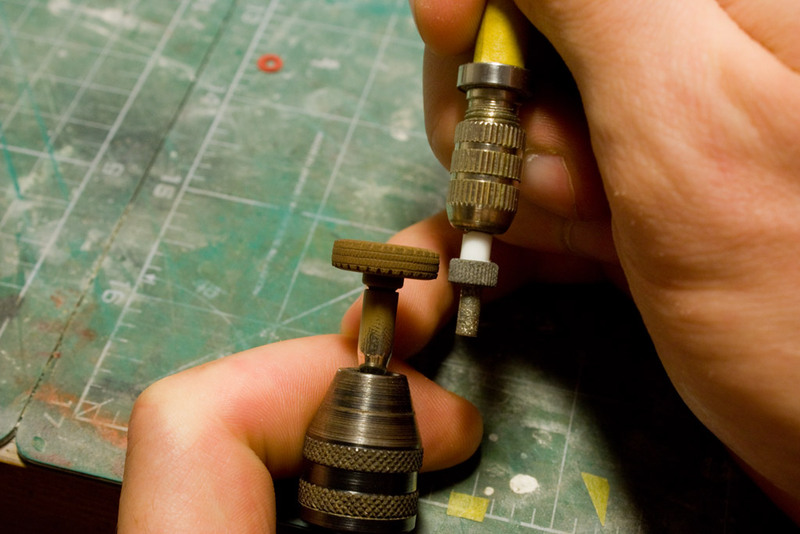

The tire from kit is fixtured to the shank and Proxxon drill (the shank is the proxxon one that come with the metal cutting blades - it has a screw) The trick is that firelock wheel is from relatively hard metal, and the tire is plastic.
vbggggg So with very low rotation speed of the drill, you push the hand drill chuck with the firelock wheel to the rotating tire (!co-axially!) and you will shape the tire with the firelock wheel tread.
Finally use scalpel or modelling saw to make three central lines
--
no german, only english :-I
greetings from Czech Republic
