Hello Sebastian and Papy, youre welcome in this english part.
The process I follow was;
1- I saw the load test from Artetxe girder trailer with goldhofer techichnical service germany
2- I saw the transport with this unit
3- became to draw in my computer the girder trailer in 1:50
4- print
5- make the model in wood cutted by hand in my home
6- the model are not so pretty and many problems with the holes with my dremel
7- became the idea to make in solid aluminium
8- I draw in autocad

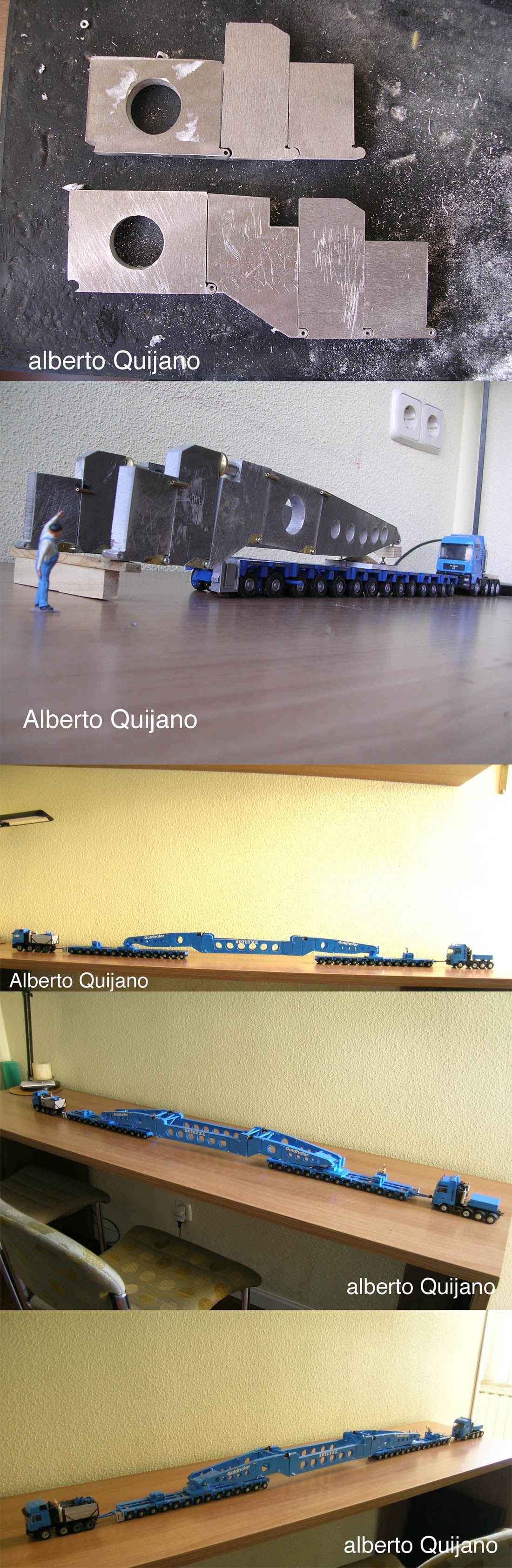

9- I find a industrial laser cut industrie in Madrid who cutted me all the pieces
10- some holes are so small for laser, the piece in aluminium are too wide
11- I make with dremel machine holes, small pieces for coupling, and the bars who change the apperture from two schnabels. My idea from the beginning are that my model was equal modular as 1:1 and I can change the high, wide and extension in all the model with screw.
12- pre-paint
13- airbrush with the same paint colour. Artetxe gives me some bottles
14- I make the decals in vinile cuttled as original, I usually make my own decals in my computer.
15- make the configuration with the 2 14 axles painted too
16- finish the 2 artetxe tractor units
17- make the first photos
thats all
I hope you serve, if you want I can send you some other photos with some part from this process
best regards and many thanks in this happy old 2005
Alberto
 |
