000 — Direktlink
23.02.2009, 05:12 Uhr
Jason

Here is my latest custom build. a 2 axle boom dolly which is headed to a customers Liebherr LTm 1200

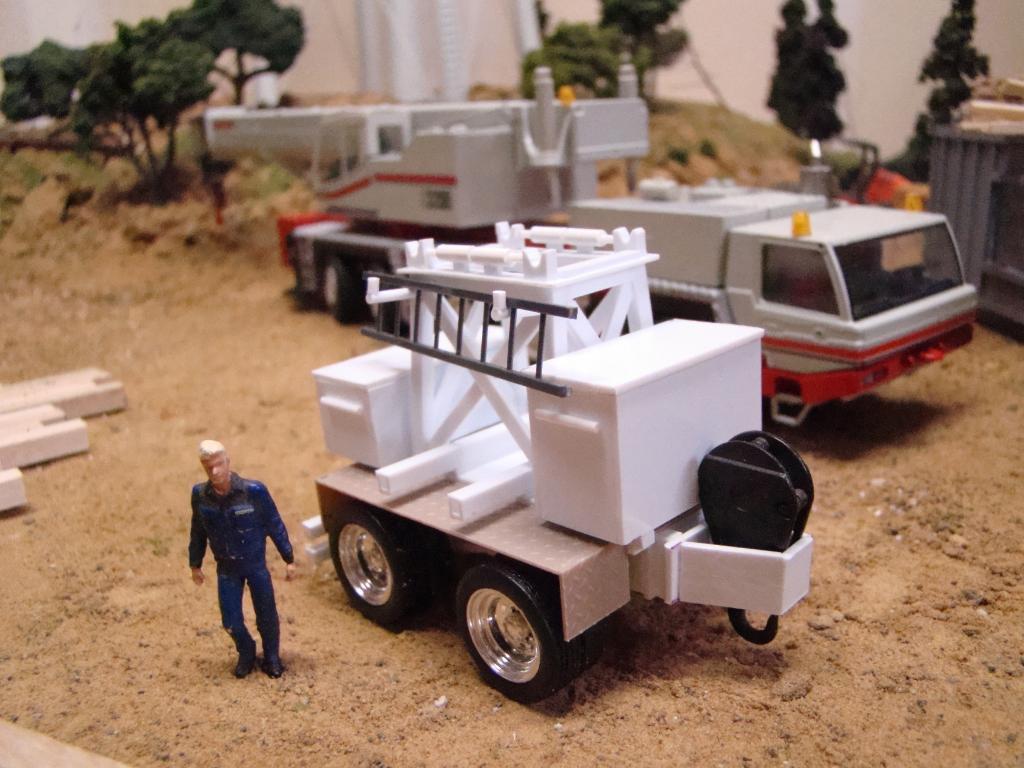

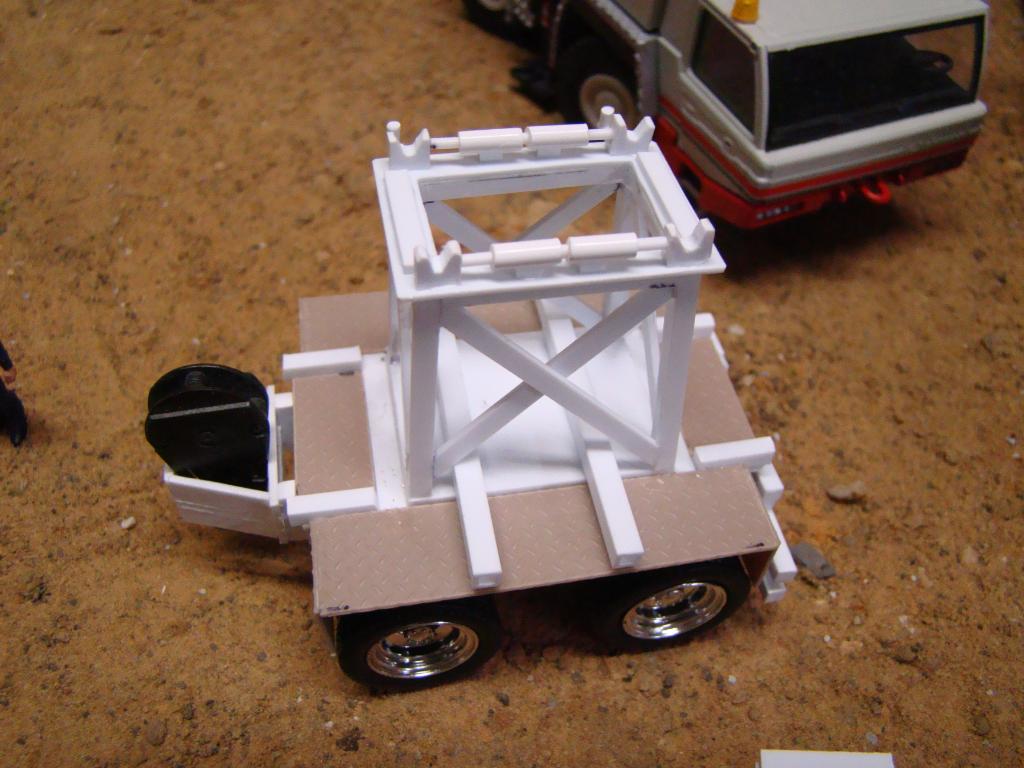

Unpainted

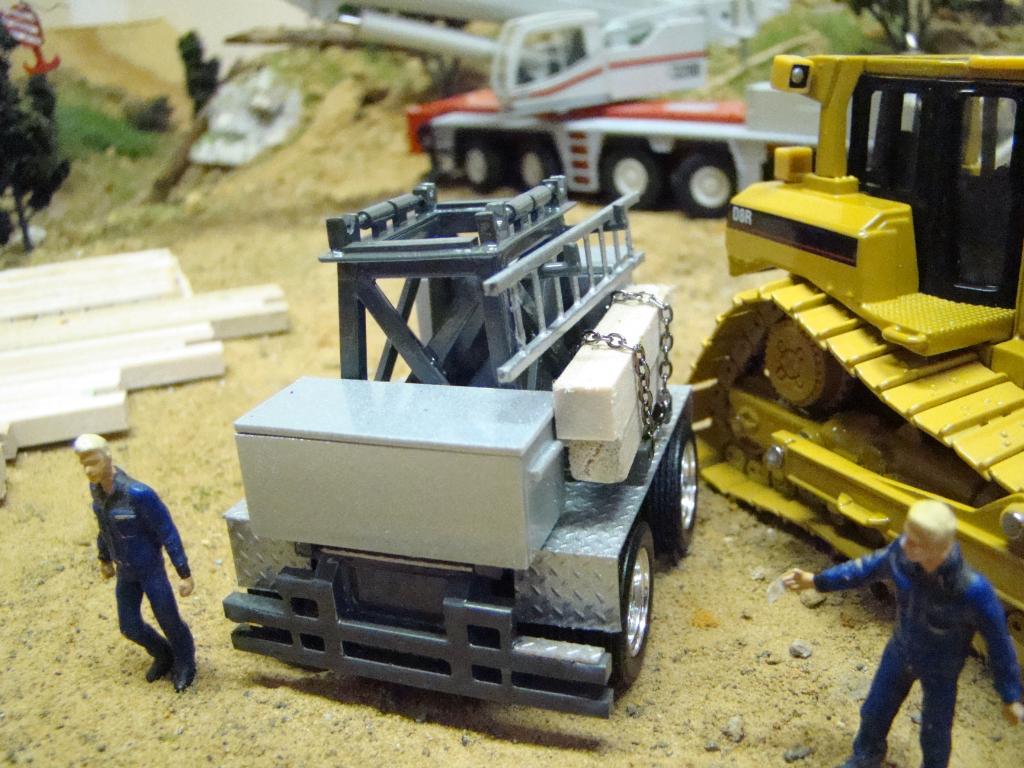

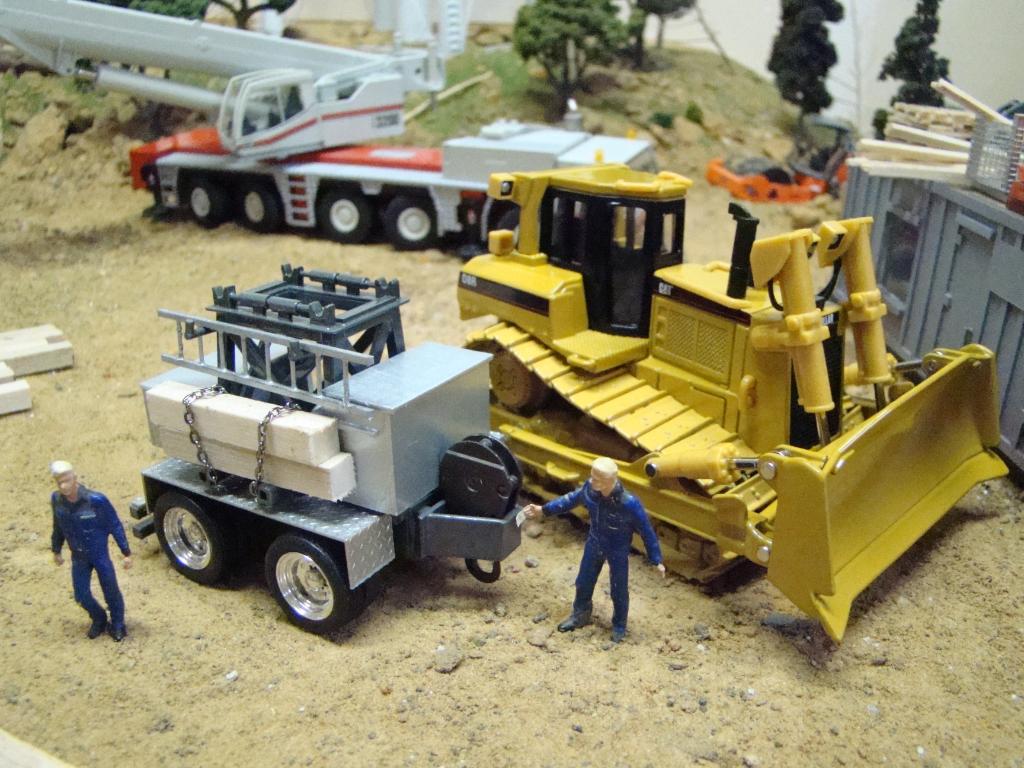

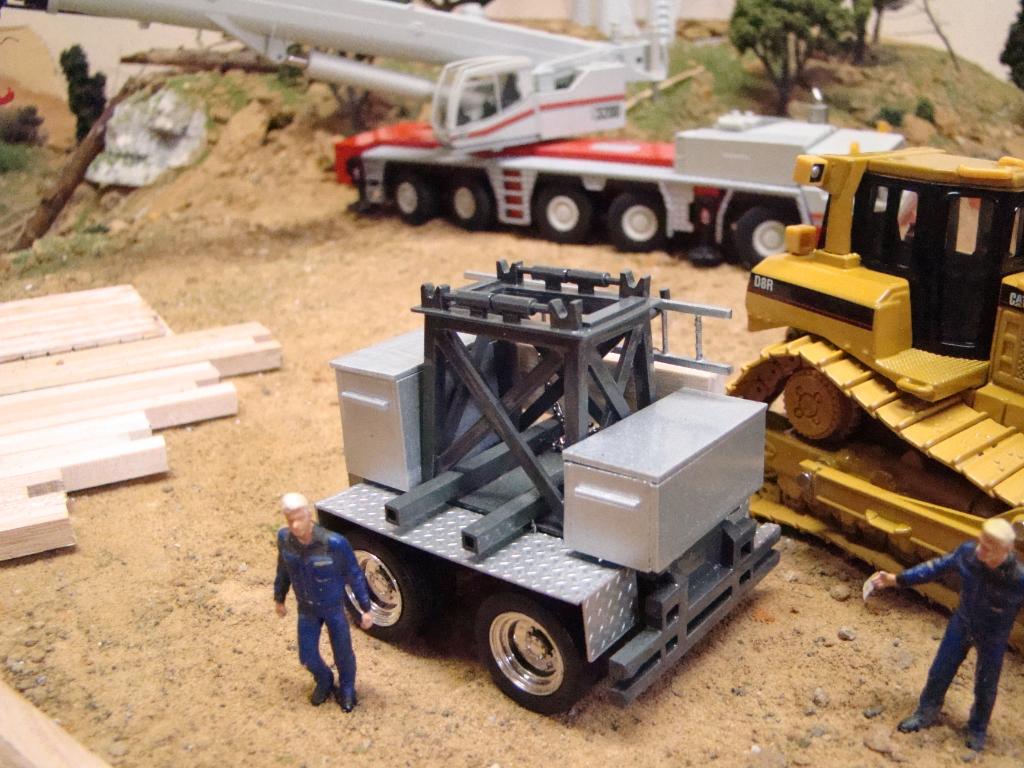

All painted

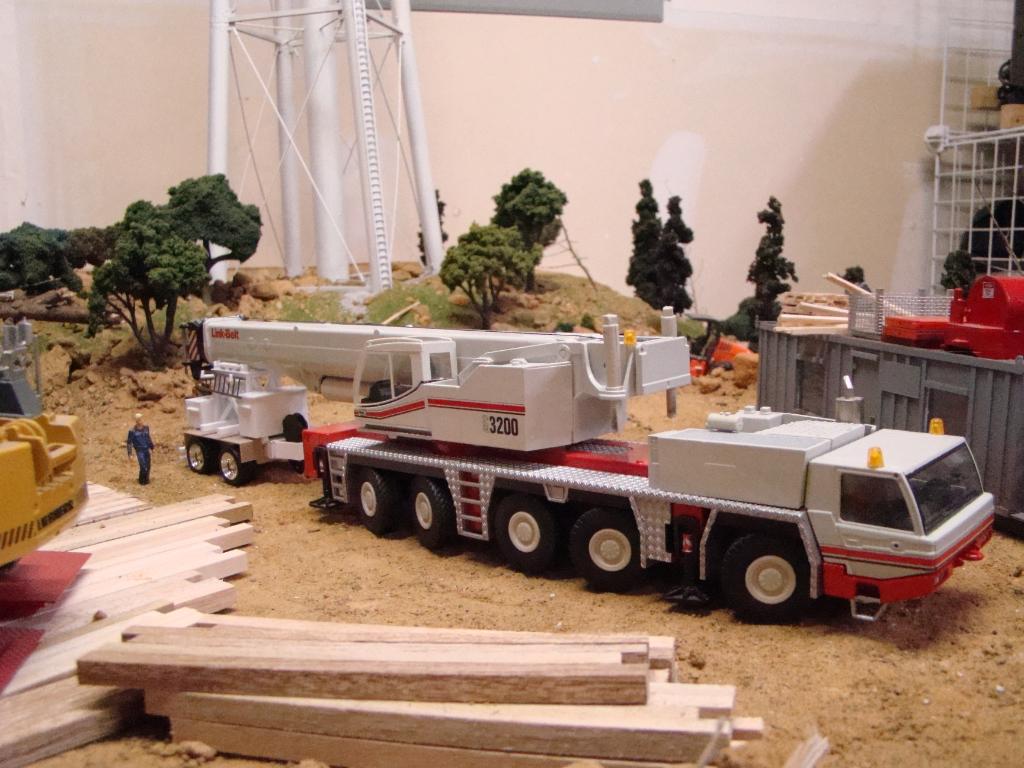

All hooked up on the boom

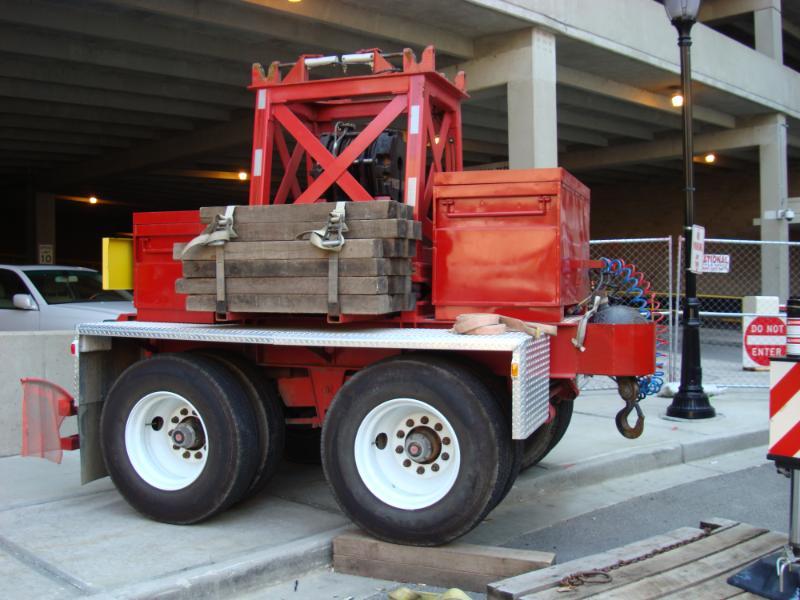

The real dolly

I will be selling these, I am also coming out with a 3 axle version in a few weeks

Jason
--
http://www.jaynikl.piczo.com/?cr=1

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

001 — Direktlink
07.04.2009, 21:42 Uhr
Jason

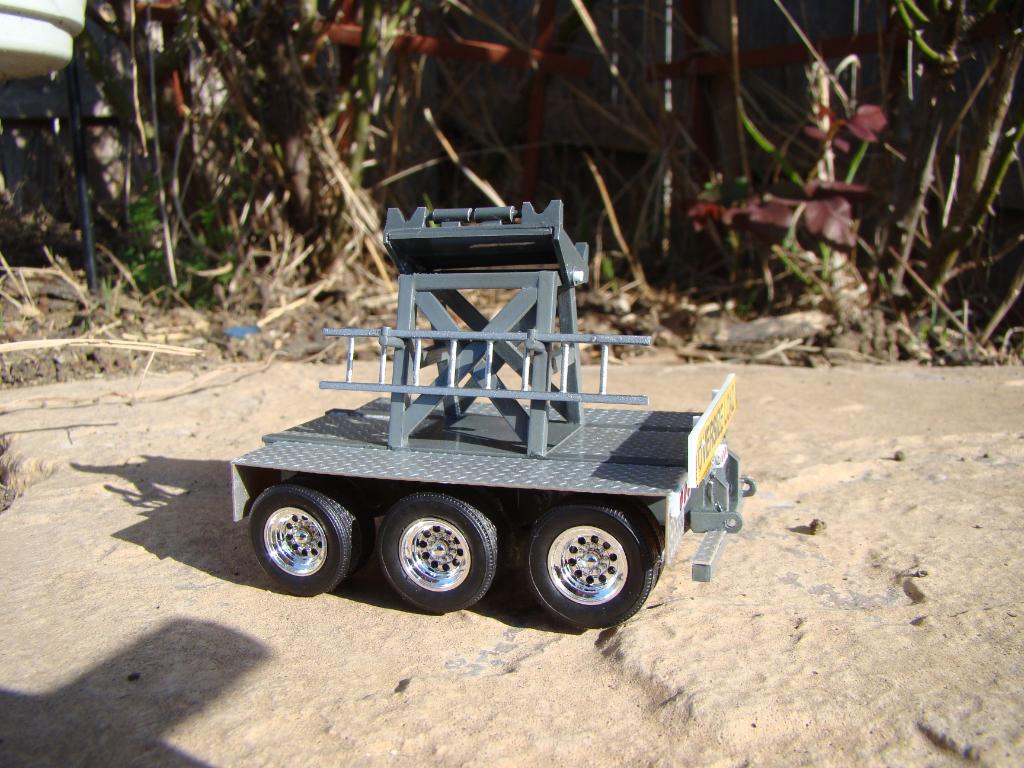

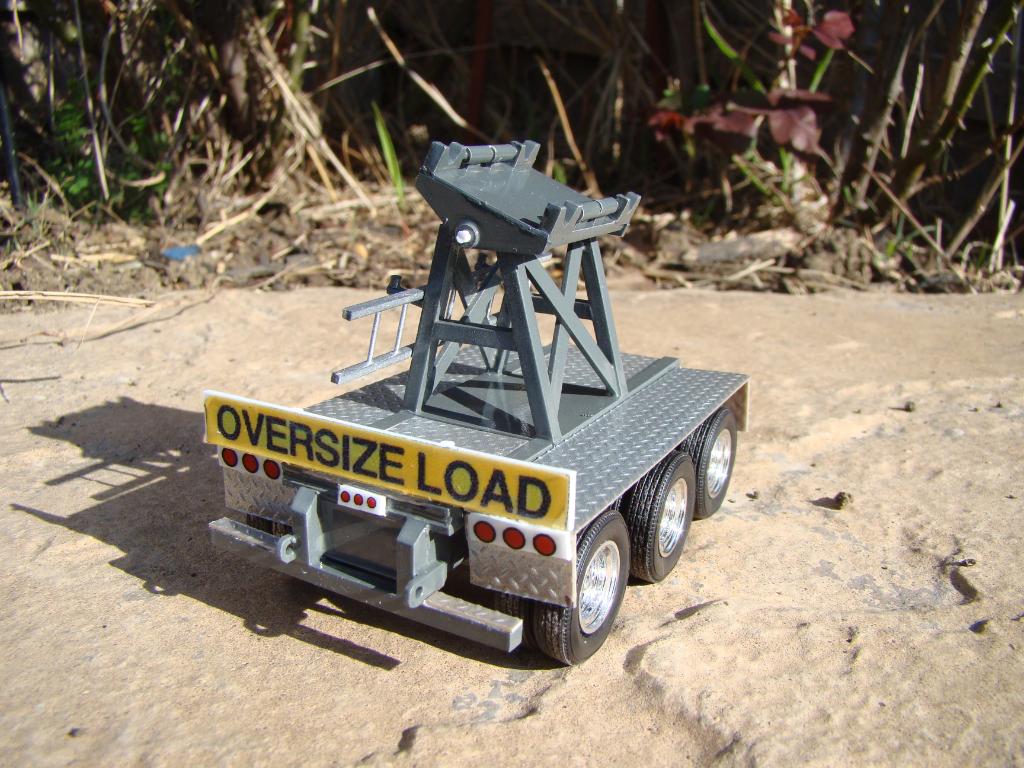

Here is the 3 axle version

I have made the boom attachment pivot on this model.
JAson
--
http://www.jaynikl.piczo.com/?cr=1

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

002 — Direktlink
08.04.2009, 02:25 Uhr
LTL2600

Jason, i might be hitting you up for 1 or 2 of the 3 axle dollies for my LTM 1300(s)

sorry, this is Dewoc19 just in case you didnt know
Dieser Post wurde am 08.04.2009 um 02:26 Uhr von LTL2600 editiert.

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

003 — Direktlink
08.04.2009, 03:56 Uhr
Dave

LTL2600, the hard part is the attachments to the boom.
--
Greetings from Chicago

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

004 — Direktlink
08.04.2009, 08:31 Uhr
Christian

very nice indeed, but how does it connect to the crane boom? the bolt eyes are open to the top...
--
Gruß aus dem Schwarzwald
Christian
-------------------------------

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

005 — Direktlink
08.04.2009, 15:23 Uhr
Phil

looks nice,
but what is the sence of such a boom dolly?
--
Gruß
Philipp

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

006 — Direktlink
08.04.2009, 15:57 Uhr
Christian

it is designed to reduce taxle loads to meet national US legislation. also sometimes you are not allowed to have the boom pointing forward

however in real the boom dolly can have contradictory results leading to even higher axle loads and road damage
--
Gruß aus dem Schwarzwald
Christian
-------------------------------

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

007 — Direktlink
08.04.2009, 16:38 Uhr
LTL2600

Zitat:
Phil postete
looks nice,
but what is the sence of such a boom dolly?

Phil, here in the US, MOST cranes are not allowed to drive with the boom forward, only very small crane can actually do it.... so we have to spin the boom so its backwards and then put it in a boom dolly to lower the axle weights for the roads. if you ask me it just takes away from the look of a crane, the crane should drive with the boom forward and hook block attached

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

008 — Direktlink
08.04.2009, 23:04 Uhr
Phil

thanks
--
Gruß
Philipp

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

009 — Direktlink
13.04.2009, 06:41 Uhr
Jason

Thanks for the complements. Dewoc good to hear from you, just contact me through my website if you do want any, I am making quite a few of these dollies
Chrsitian are you talking about on my model or the real dollies for the attachment?
Jason
--
http://www.jaynikl.piczo.com/?cr=1

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

010 — Direktlink
13.04.2009, 11:51 Uhr
Modellumbauer

Avatar von Modellumbauer

Hello,

sorry for my bat english but i have a qestion:

Do you have a picture for your modell from the Trailerhatch?

For example: your crane in scale 1:50 and your dollytrailer on cranehatch
Dieser Post wurde am 13.04.2009 um 11:52 Uhr von simuumbauer editiert.

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

011 — Direktlink
04.05.2009, 05:19 Uhr
Jason

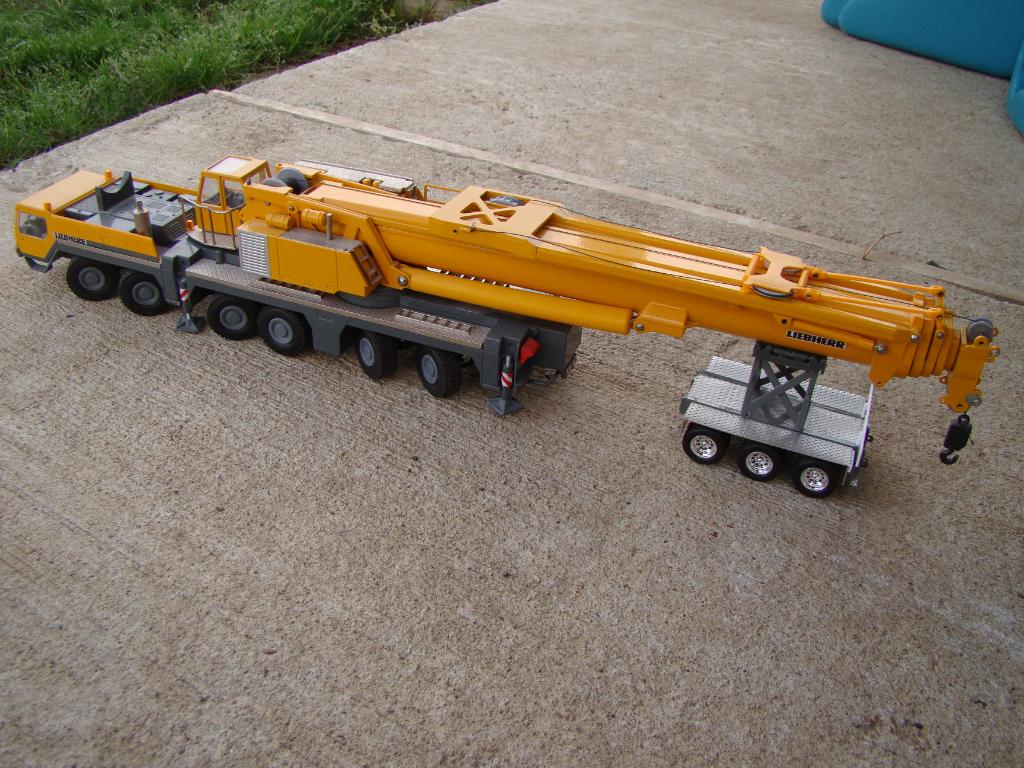

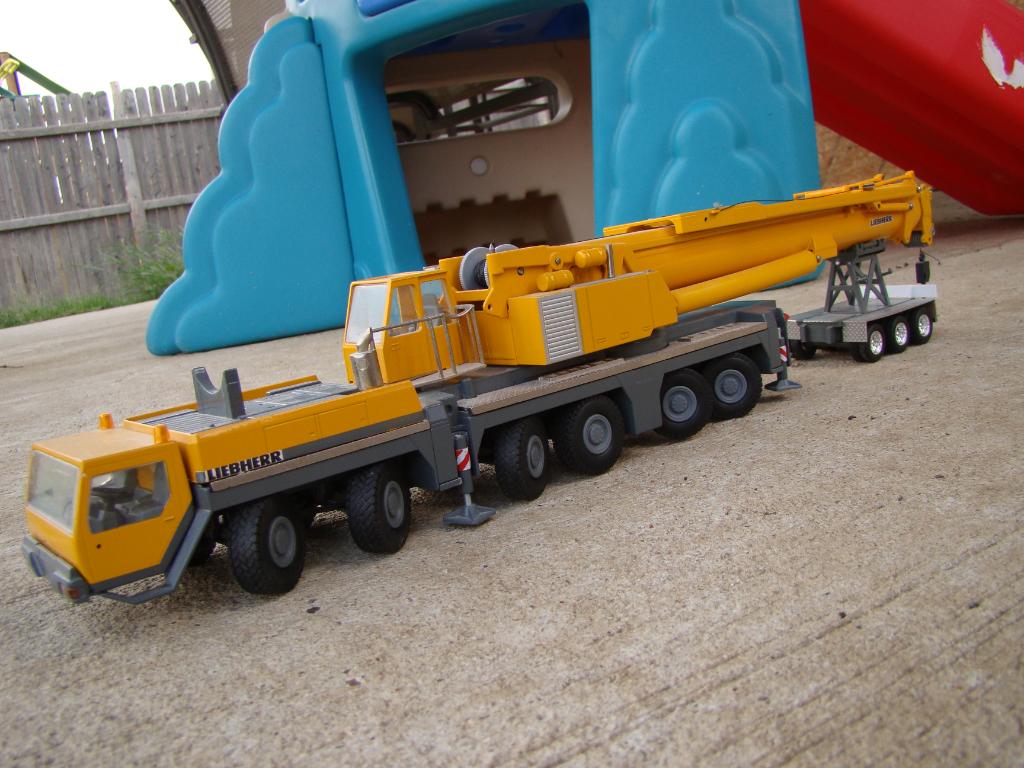

Here is some pics with on the LTM1300

Let me know if want any other pics
JAson
--
http://www.jaynikl.piczo.com/?cr=1

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
